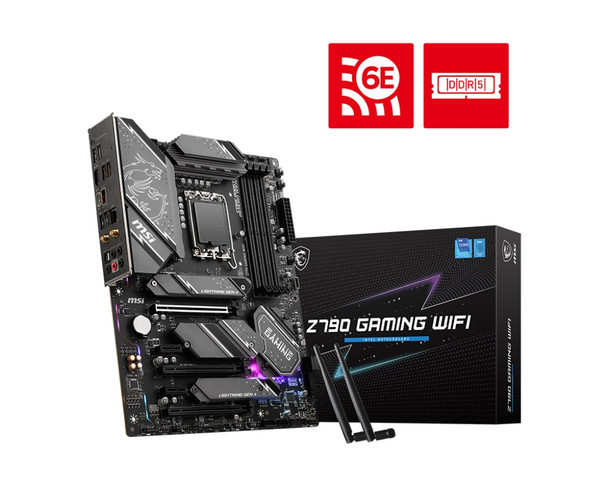

MSI Z790 Gaming WIFI Intel E-ATX Motherboard, 4x DDR5~192GB, 3x PCI-E x 16, 2x PCI-E x 1, 3x M.2, 4x SATA, 7x USB 3.2, 1x USB-C

MSI Z790 Gaming WIFI Intel E-ATX Motherboard, 4x DDR5~192GB, 3x PCI-E x 16, 2x PCI-E x 1, 3x M.2, 4x SATA, 7x USB 3.2, 1x USB-C FEATURES: Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System with DrMOS, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G High Quality PCB: 6-layer PCB made by 2oz thickened copper Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience SPECIFICATIONS: CHIPSET INTEL Z790 CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR5, Maximum Memory Capacity 192G Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 3x PCI-E x16 slot 2x PCI-E x1 slot STORAGE 3x M.2 4x SATA 6G INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
