Description

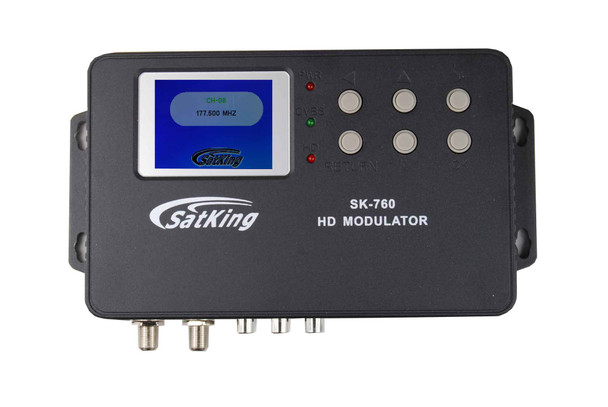

This single input high definition MPEG-4 RF modulator is fully featured with IR return path and HDM loop through. Boasting a large LED display with full control of all functions via the front panel keys. The unit is simple to use and pre-set for use in Australia. Parameters such as LCN, Channel name and network ID are all adjustable. The unit is perfect for distributing any high definition source around hotels, clubs and homes.
Features:
- Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 (H.264) DVB-T COFDM TV channels
- IR return path (targets included)
- Selectable input either HDMI or CVBS
- Compatible input resolutions 576i/720P/1080i/1080P
- Maximum 1080P Output
- HDMI input-with HDMI loop through for local connectivity
- RF Loop Through
- Full function front LED display menu control
- Fully adjustable RF output
- Aluminium Case
- Compact design
- Adjustable channel name, number and Network name
- Silent operation, no fan
*Note the remote must be IR not Bluetooth to work with the IR blaster
Technical Specifications:
Input
- Channels: Single
- Source: HDMI + CVBS
- HDMI Resolution: 576i, 720p, 1080i, 1080p
RF Output
- Frequency: 50-860MHz
- MER: 35dB
- Output Level: 70-100dBuV
Modulation
- tandard: DVBT
- Bandwidth: 6,7,8 MHz
- Constellation: QPSK, 16QAM, 64QAM
- Guard Interval: 1/4, 1/8, 1/16, 1/32
- Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
- Carrier: 2K, 8K
Compression
- Video: MPEG-4 AVC, H.264
Power
- Plug Pack 240VAC/12VDC 1.5A
- Connections: HDMI IN x1, HDMI Out x1, CVBS in x1 RF In x1, RF Out x1, IR x1 2.1mm DC Jack x1, Mini USB x1
Physical
- Dimensions: 210x130x40mm
- Weight 500g
- Temperature Range: 0-45°C
Packages:
- 1x SK-760
- 2x IR Blaster
- 1x Power Pack
- 1x USB cable
- 1x Instruction Disk
