Description
STRONG - SRT5437 HD DIGITAL SET TOP BOX WITH RECORD FUNCTION & MULTIMEDIA PLAYBACK VIA USB
High Definition Digital Set Top Box, with Digital Video Recorder ability - Record up to 500 hours of live TV
STRONG's High Definition Digital Set Top Box with Record function (SRT 5437) gives any TV, even older analog TV access to Digital TV.
Get access to all the latest Digital channels, with this easy to install Box.
You can record directly to a USB Hard Drive and never miss your favorite show again.
Did you know that you can use this unit for Multimedia playback?
Using the USB located on the front of the unit you can watch movies, photos and listen to music.
Turn your TV into a Media Centre.
- High Definition, MPEG4 DVBT-2, access all available Digital TV Channels
- Record to USB - up to 500 hours of recording on 1TB (Hard drive not supplied)
- Play HD Movies, music and photos on your HD TV; via USB
- Record one program while watching another from the same network ie; Record ABC1 and watch ABC24.
- Pause & Rewind Live TV
- Access the latest Digital Channels
- Electronic Program Guide - EPG
- Multiple Outputs; HDMI & Composite
- Comes with a learning Remote.
- Allows you to control your TV and set top box with one handy remote and it’s easy to use.
- Auto & Manual Channel Search
- Favorite Channel List
- MEPS Compliant and Parental Lock
To access your own Media files, simply plug in your External USB Hard Drive (up to 1TB not supplied), to the USBport on your SRT5437
Files can be accessed via the USB button on the remote.
There is also handy Rewind, Fast Forward, Play, Pause andStop buttons as well.
To record your favorite TV Shows, set your recording up via the EPG or Manual Timer.
To Playback recorded programs simple access via the USB button on remote.
CONTENTS:
- 1 x SRT 5437 Digital Set Top Box
- 1 x User Manual
- 1 x Remote Control & Batteries
- 1 x Power cable |
- 1 x 1.2m HDMI cable (for optimal picture quality HDMIcable is recommended)
SPECIFICATIONS
| Audio/Video IN/OUTPUT | |
| Audio | Coaxial digital audio output/ SPDIF |
| Audio L/R | RCA/Cinch, Volume and Mute control/ |
| USB | USB 2.0 Host (USB Port x 1 Front Panel), A-type |
| Video | RCA/Cinch, Video Outputs (CVBS) @576I OR480I |
| HDMI 1.3(High Definition Multimedia Interface)SUPPORT HDCP |
| Data Port | |
| USB | USB 2.0 Host (USB Port x 1 Front Panel), A-type |
| General Data | |
| Dimensions | W150 x D90 x H30mm (D110mm with connections) |
| Weight | 0.3Kgs (30grams) |
| Hard Disk - Not Supplied | |
| Hard Disk - Not Supplied | Not supplied, Will support 1 TB External USB Hard Disk Drive: NTFS or Fat32 File system |
| MPEG Transport Stream & AVDecoding | |
| Aspect Ratio | 4:3, 16:9 |
| Audio Decoding | MPEG-2 Layer I & II (Music Cam), MPEG4 AAC andMPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up tp 640K bits/s, LPCM up to 48KHz, MP3 |
| Audio Mode | Stereo/Joint Stereo/Mono |
| Profile Level | MPEG-1/2 MP@ML, H.264 DivX & MPEG4 |
| Sampling Rate | 32KHz, 44.1KHz & 48KHz |
| Video Formats | JPEG, BMP, PNG, AVI, MKV, MP4, OGG, TS |
| Video Resolution | 576i, 576p, 480i, 480p, 720p60, 1080i, 1080p |
| MPEG TS A/V Decoder | |
| Transport Stream | MPEG-2 ISO/IEC 13818-1 |
| Video | RCA/Cinch, Video Outputs (CVBS) @576I OR 480I, HDMI 1.3(High Definition Multimedia Interface)SUPPORT HDCP |
| Power Supply | |
| Input voltage | AC100~240V (Detachable) |
| Output voltage | DC12V |
| Power Consumption | Standby <1W, on mode Max 6W (without DVR) |
| Tuner | |
| Carrier Mode | 1k,2k,4k,8k,16k,32k mode |
| Code Rate | 1/2,3/5,2/3,3/4,4/5,5/6 |
| Frequency Range | 177.5-226.5MHz (VHF) BW=7Mhz | 474-8585MHz (UHF) BW =8Mhz |
| Guard Interval Modes | 1/4,1/8,1/16,1/32,1/128 |
| IF Bandwidth | 7 MHz |
| Input Impedance | 75 ohm |
Related Products
Related Products
HD Digital Terrestrial 12V / 240V Set Top Box
DYNALINK
HD TV Digital Terrestrial Set Top Box With PVR Function USB Recording
DYNALINK
Strong SRT4922D+ MPEG4, DVBS2 HD SAT RECEIVER
STRONG

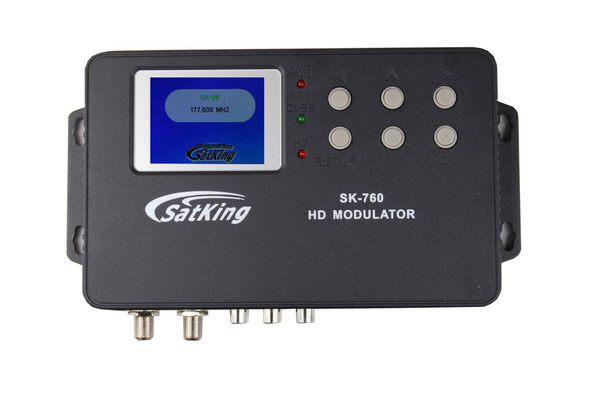

SatKing SK-760 Single Input HD Digital RF Modulator
