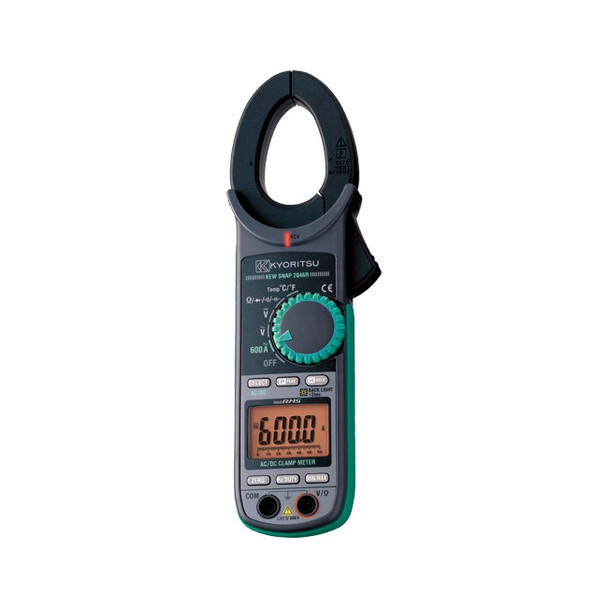

KYORITSU Kyoritsu Digital Clamp Meter 600Amp Ac/ Dc True Rms Cat4

(No reviews yet) Write a Review

SKU:: 46440001
UPC:
MPN:: 2046R

$709.00

Current Stock: 1

Quantity:

Frequently bought together:

Description

Description

2046R - AC/DC Digital Clamp Meter

Kyoritsu 2010 Clamp Meter Product Selection Guide (873kb PDFfile)

FEATURES:

Designed to meet international safety standard IEC61010-1 CAT.IV 600V
CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits
Thus, very useful for power distribution companies, power utilities and maintenance fields
True RMS enables an accurate measurement
Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage
Double molding gives comfortable feeling in palm
6039 counts with Bar Graph display
MIN/MAX function enables to keep easily min & max value during measurement

SPECIFICATIONS:

AC A	0~600.0A smn;5dgt (50/60Hz) smn;5dgt (40~500Hz)
DC A	0~600.0A smn;5dgt
AC V	6/60/600V Auto Ranging smn;4dgt (50/60Hz) smn;5dgt (40~400Hz)
DC V	600m/6/60/600V Auto Ranging smn;3dgt
Ω	600/6k/60k/600k/6M/60MΩ (Auto Ranging) n;5dgt (600~6M) / ±5%rdg±8dgt (60M)
Continuity buzzer	Buzzer Sounds at 100Ω
Frequency/DUTY	10/100/1k/10kHz (Auto Ranging)/ 0.1~99.9%
Temperature	-50ºC ~ +300ºC (Withthe use of Temperature probe 8216)
Conductor Size	Ø33mm
Withstand Voltage	6880V AC for 5 seconds
Safety Standard	IEC 61010-1 CAT.IV 600V, IEC61010-031, IEC61010-2-032, IEC61326
Power Source	R03(1.5V)(AAA) × 2
Dimensions	243(L) × 77(W) × 36(D)mm
Weight	300g
Accessories	7066 (Test Lead) 9094 (Carrying Case) Instruction Manual
Option	8216 (Temperature Probe)
