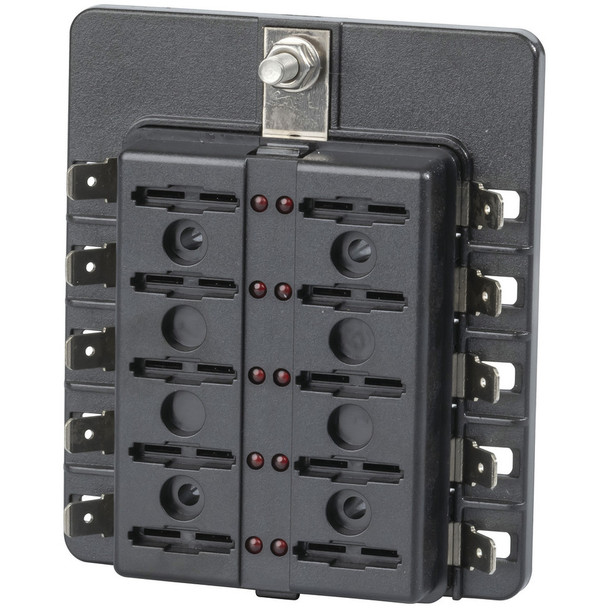

10 Way Blade Fuse Block - Spade Terminal Connection
- SKU:
- SZ2098
- UPC:
- 9319236730768
- Availability:
- Usually ships in 48 hours
Frequently bought together:
Description
A convenient 10-way fuse block with integrated “fuse blown” indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes convenient spade output connections for straight forward connections. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.
Features:
Input Terminal Rating: 32VDC @ 100A Max
Input Wire Size: 4-6 AWG
Output Terminal Rating: 30A Max. per Circuit
Output Wire Size: 12-16 AWG
Fuses: Automotive Blade up to 30A
