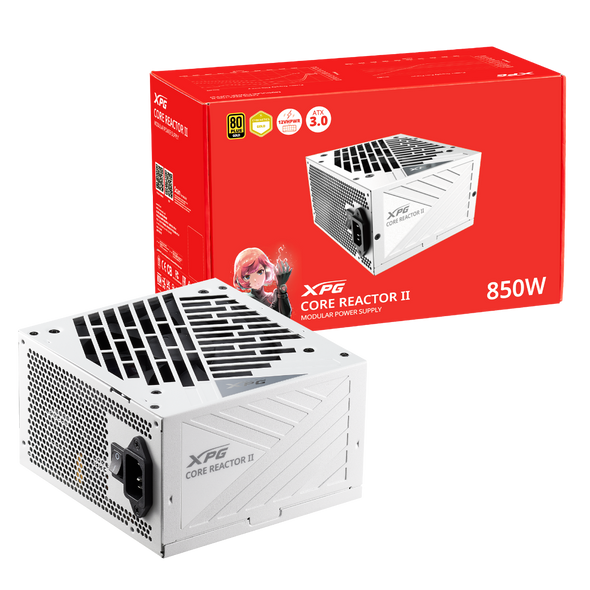

Name: 850W ADATA XPG CORE REACTOR II VE POWER SUPPLY
Brand: ADATA
SKU: PS-AD-850GMIIVE
Price: 199 AUD
Availability: InStock

850W ADATA XPG CORE REACTOR II VE POWER SUPPLY

(No reviews yet) Write a Review

SKU:

PS-AD-850GMIIVE

UPC:

4.71109E+12

Description

SPECIFICATIONS & DETAILS
Model Name
	COREREACTORIIVE850G-BKCAU
Specifications
PRODUCT NAME	XPG CORE REACTOR II VE
DIMENSIONS (L X W X H)	140 x 150 x 86mm
CYBENETICS RATING	GOLD
80 PLUS RATING	GOLD
ATX VERSION	Intel ATX 12V v3.1
PROTECTIONS	OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
CERTIFICATION	CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
PFC	0.99
INPUT VOLTAGE	100-240V
INPUT CURRENT	850W: 12A 750W: 10A 650W: 10A
INPUT FREQUENCY	47Hz-63Hz
DC OUTPUT VOLTAGE	+5V \| +3.3V \| +12V \| -12V \| +5Vsb
TOTAL OUTPUT	850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
POWER EXCURSION	850W: 1997W (up to 235% of the PSU's rated power for 100μs) 750W: 1762W (up to 235% of the PSU's rated power for 100μs) 650W: 1527W(*up to 235% of the PSU's rated power for 100μs)
OPERATING TEMPERATURE	40°C
FAN SIZE	120mm FDB Fan
FAN BEARING	FDB (Fluid Dynamic Bearing)
FAN SPEED	2400 RPM
MTBF	100K hours at full load
ATX 24 PIN CONNECTOR	1
EPS 8 PIN CONNECTOR	2
PCI-E 6+2 PIN CONNECTOR	850W / 750W: 3 650W: 2
MOLEX 4 PIN CONNECTOR	2
12V-2X6 (12+4) CONNECTOR (600W)	850W / 750W: 1
12V-2X6 (12+4) CONNECTOR (450W)	650W: 1
SATA CONNECTOR	6
WEIGHT	850W / 750W: Product + Cables: 1450g+1350g with Package: 3.03kg 650W: Product + Cables: 1450g+1320g with Package: 3kg
WARRANTY	7 years
