Blackhawk

BLACKHAWK 698-2700Mhz Panel Antenna Blackhawk

(No reviews yet) Write a Review
SKU:
421880
MPN:
ANT-BH-WAL
$169.00
Frequently bought together:

Description

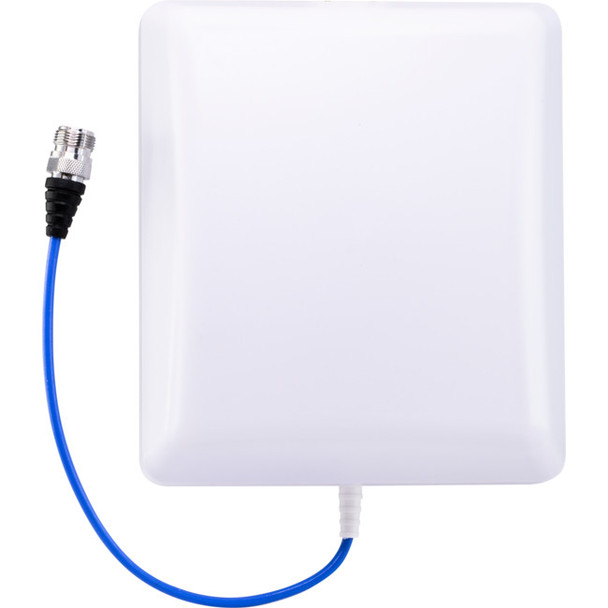

ANT-BH-WAL-698/2700-65 - BLACKHAWK INDOOR WALL MOUNT ANTENNA

Provides a 7dbi gain for 698-960 MHz

Provides a 8dbi gain for 1710-2600 MHz


The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of whatfrequency they operate on.


Offering a 7dB gain this antenna is suitable as an indoorantenna or panel antenna, that can be mounted on a wall for repeater applications.


Main Technical Specifications:

  • Model
 BH-WAL-698/2700-65
  • Frequency Range
 698~960 MHz / 1710~2600MHz
  • VSWR
<1.5
  • Input Impedance
 50Ω
  • Gain
 7 / 8dBi
  • Polarization type
 Line polarization
  • E-plane beamwidth
65°
  • H-plane beamwidth
90°
  • F/B Ratio
 ≥23dB
  • Max Power
 50W
  • Lightning protection
 DC ground
  • Connector Type
 N Female
  • RG58/U cable
L=300mm
  • Weight
 600g
  • Dimensions
210mm×180mm×44mm
  • Radome material
 UV-Resistance ABS
  • Radome color
 White
  • Working temperature
 -40°C~+60°C
