DOSS 100M Roll 16Awg 100V Speaker Cable 2X30-.25 1.5Mm2 Double Insulated
(No reviews yet)
Write a Review
- SKU:
- 5101170
- MPN:
- SP230-100
Frequently bought together:
Description
Features
- 2x 1.5mm2 conductors composed of 30 strands of 0.25mm oxygen-free copper suit more for the 100V line speaker installation
- Double insulated fig 8 flat cable makes it easy to run
- Black outer jacket clour makes it easy to distinguish from other cables
- Reverse metre marking. Less scrap! See how much cable has been used and how much is left - before you pull the cable
Specifications
Inner conductor | Material | Oxygen-free copper |
Construction | 2-core 30strand/0.25mm | |
Section | 1.5mm2 | |
American wire guage | 16AWG | |
Insulation | Material | PVC |
Colours | Black / Red | |
Nominal Diameter | 2.7mm | |
Nominal wall thickness | 0.6mm | |
Outer Jacket | Material | PVC |
Colour | Black | |
Diameter | 4.4mm x 7.0mm | |
Nominal Wall Thickness | 0.8mm | |
Other Characteristics | Max DC resistance | 12.8 Ω/M |
Rated voltage | 300/600V | |
Operating temperature | 70°C | |
Compliance | ROHS | |
|
|
Related Products
Related Products

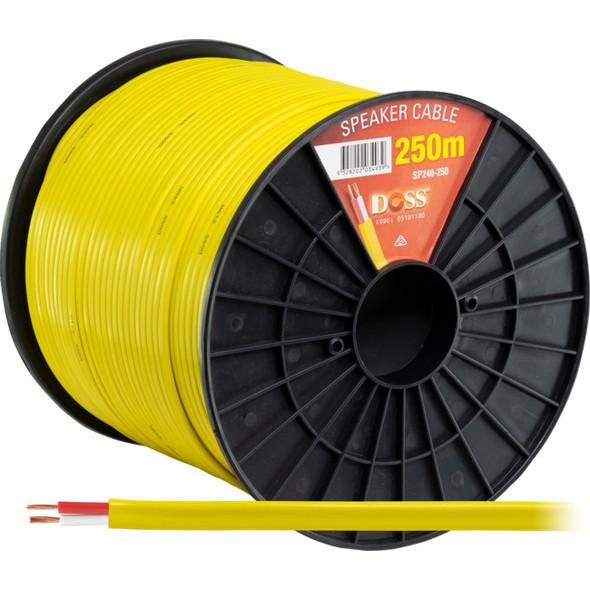

DOSS 250M Roll 18Awg 100V Speaker Cable 2X24-.20 0.75Mm2 Double Insulated
