Description
FULL HIGH DEFINITION OVER AN IP NETWORK

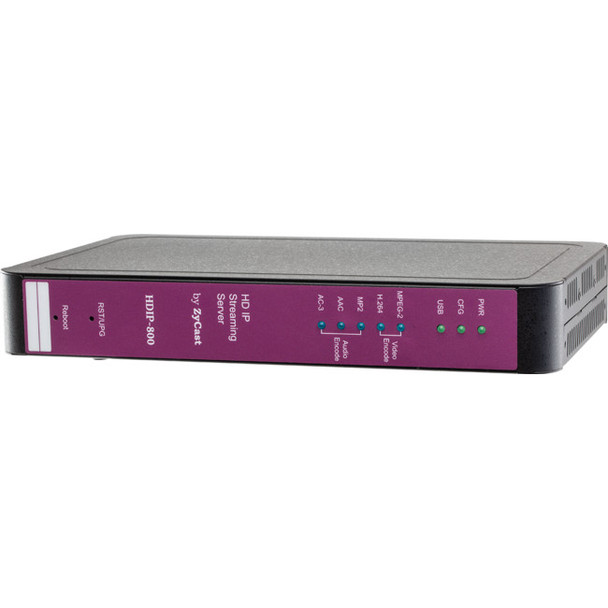

Resi-linx HDIP800 " digi-MOD IP " streaming server allows you to stream any AV source/s to multiple HD TV's or connected computers within the IP network with ease.
ENDLESS APPLICATIONS
The digi-MOD IP HD streaming server is perfect for all media applications including Digital Signage, HD Classrooms,Pro AV systems, Homes, Corporate Board rooms, CCTV IP Streaming and HD distribution over IP networks
digi-MOD IP can even be connected directly to the following brand TV's without the requirement of IP-STB's making it an economical solution
- Sony Bravia Series
- Samsung Smart TV
- LG Smart TV
MULTIPLE INPUT OPTIONS
The IP streamer accepts a HDMI, component, composite video, USB and both Analogue and Digital audio inputs the HDIP800 can stream any content you require. More sources required? Simply buy a HDIP800 per source - it's that easy!
FEATURES:
- HDMI, Component, Composite video inputs with auto detection
- Dual mode H264 AVC / MPEG-2 selectable
- Video Resolution from 480i to 1080p
- Analogue, Coaxial and Optical audio inputs
- Audio Format: - MPEG 1 Layer2 (MP2), AAC
- AC-3 pass through
- Easy Installation and use
- Web based programming
- GigE output port
- Streaming Protocols
- HTTP Server ( DLNA )
- UDP/RTP multicast
- UDP/RTP unicast
- TCP unicast
- Supported Clients
- Sony Bravia Series
- Samsung Smart TV
- LG Smart TV
SPECIFICATIONS:
|
Ethernet Output |
1Gpbs - RJ-45 |
USB ( optional ) | USB 2.0 | |
Video Input | HDMI, YPbPr, CVBS | |
Audio Input | Analogue, Coaxial, Optical | |
|
Video Format | MPEG -2, AVC |
Audio Format | MPEG 1 - Layer2 (MP2), AAC, AC-3 passthrough | |
Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |
Video Bitrate | MPEG-2 HD: 10 to 20Mbps, MPEG-2 SD: 2 to 8Mbps, AVC HD: 2 to 10 Mbps, AVC SD: 1 to 4 Mbps | |
Audio Rate | 128, 256, 384, 448, 512Kbps | |
Streaming Protocols | HTTP Server ( DLNA ) UDP/RTP multicasting, UDP/RTPunicasting, TCP unicast | |
|
Digital Living Network alliance ( DLNA ) | Media Server 1.5 |
Closed Caption | Yes | |
Power Supply | 12V DC 1.5 amp | |
Consumption |
500mA | |
Dimension | L- 236mm x W- 155mm x H- 35mm | |
Weight | 940g |
