HILOOK
HILOOK 4Ch Nvr With Poe With 2Tb Hdd No Warranty If Hdd Is Removed
(No reviews yet)
Write a Review
- SKU:
- 43173051
- MPN:
- 104MH-C4P-2TB
Frequently bought together:
Description
Overview

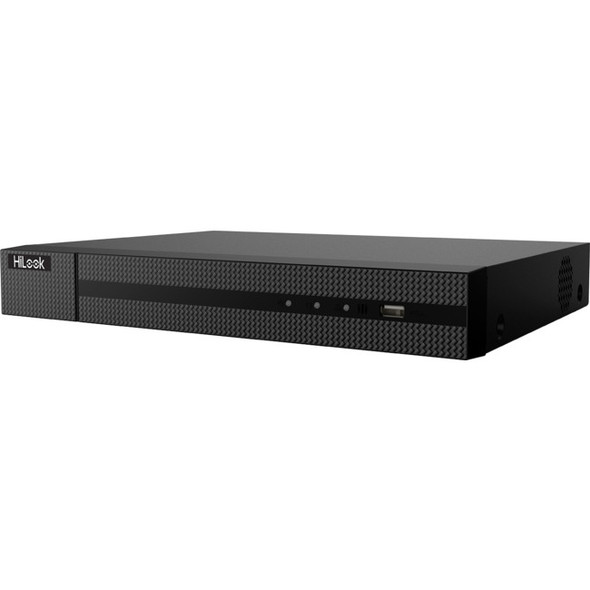

HiLook NVR-104MH-C-4P 4×PoE 4 Channel 4K HDMI
1 × SATA Network Video Recorder with 2TB Hard Drive Built-In
Warranty is voided if HDD is removed.
- Up to 4 channel IP cameras can be connected.
- Plug & Play with 4 Power-over-Ethernet (PoE) interfaces.
- Supports decoding H.265+/H.265/H.264+/H.264 multiple video formats.
- Up to 4ch @ 1080p decoding capacity.
Specifications
Specifications
| VIDEO & AUDIO | IP Video Input | 4ch, up to 8MP resolution |
|---|---|---|
| HDMI Output | 1-ch; 4K (3840 × 2160), 30Hz / 1920 × 1080p, 60Hz / 1600 × 1200, 60Hz / 1280 × 1024, 60Hz / 1280 × 720, 60Hz / 1024 × 768, 60Hz | |
| VGA Output | 1-ch; 1920 × 1080p, 60Hz / 1600 × 1200, 60Hz / 1280 × 1024, 60Hz / 1280 × 720, 60Hz / 1024 × 768, 60Hz | |
| Video Output Mode | HDMI/VGA simultaneous output | |
| Incoming Bandwidth | 40 Mbps | |
| Outgoing Bandwidth | 80 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| DECODING | Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording Resolution | 8MP / 6MP / 5MP/ 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |
| Synchronous Playback | 4-ch | |
| Live View/Playback Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |
| Capability |
| |
| NETWORK | Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Network Protocols | IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS | |
| Remote Connections | 16 | |
| PoE | Interface | 4 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Max. Power | ≤50W | |
| Supported Standard | IEEE 802.3 af/at | |
| HARD DISK | SATA | 1 × SATA interface |
| Capacity | Up to 6TB capacity for each disk | |
| EXTERNAL INTERFACE | USB Interface | 2 × USB 2.0 |
| ENVIRONMENT | Working Temperature | −10°C to +55°C (+14°F to +131°F) |
| Working Humidity | 10% to 90% | |
| GENERAL | Power | ≤65W |
| Power Supply | 48V DC | |
| Consumption (Without Hard Disk) | ≤10W (without enabling PoE) | |
| Dimensions (W×D×H) | 265mm × 225mm × 48mm (10.4″ × 8.9″ × 1.9″) | |
| Weight (Without Hard Disk) | ≤1kg (2.2lb) |
