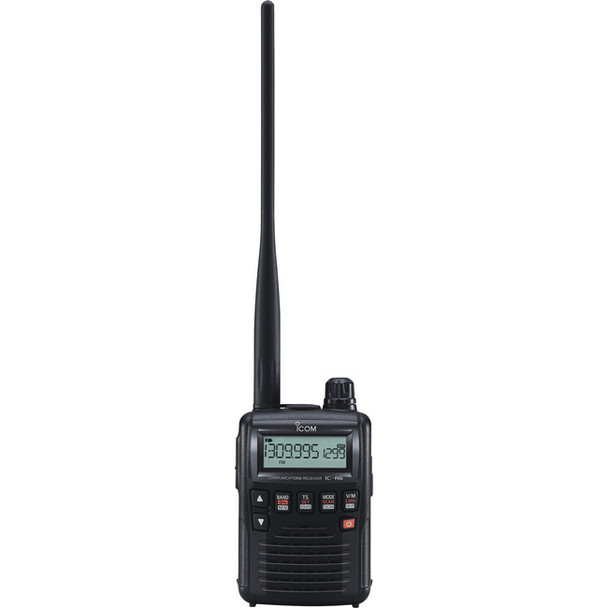

ICOM ICR6 Miniature Wideband Receiver

IC-R6 MINIATURE WIDEBAND COMMUNICATIONS RECEIVER - ICOM

AM FM & WFM RECEIVER: LISTEN TO IT ALL!

THE 100 CH/SEC WIDEBAND SIGNAL “SEARCH MACHINE”

• Full frequency coverage (0.100 MHz to 1309.995 MHz)
• High Speed Scan (100 Ch per Second)
• FM WFM AM Receive Modes
• Internal bar-antenna (For superior AM reception)
• 1300 Memory Channels (22 Memory Banks)
• Louder, Clearer Audio Output (BTL Circuits)
• 15 Hours of Continuous Receive (With External Speaker)
• VSC (Voice Squelch Control)
• Auto Digital Squelch
• Multiple scan functions
• Auto Memory Write Scan (Detects & Stores Frequencies)
• Tone (CTCSS decode) & DTCS decode
• Required 2x AA Alkaline or Ni-MH cells
• External DC input (for desktop use & Ni-MH charging)
• Optional PC programming (Enter frequencies with ease)
• 2 Year Warranty on radio

SPECIFICATIONS

• Frequency coverage : 0.100–1309.995MHz* (* Cellular blocked in the U.S.A. version.)
  France 0.100–29.995, 50.200–51.200, 87.500–107.995, 144–146, 430–440, 1240–1300MHz
• Mode : AM, FM, WFM
• No. of memory channels : 1300 regular, 50 scan edges and 200 auto memory write
• Usable temperature range :–10˚C to 60˚C ; 14˚F to 140˚F
• Frequency stability : ±1.0ppm (at 25˚C)
• Tuning steps : 5, 6.25, 8.33*, 9*, 10, 12.5, 15,20, 25, 30, 50, 100, 125, 200kHz (* Selectable depending on operating bands.)
• Battery requirement : 2×R6 (AA) size Ni-MH or alkaline cells (not inc.)
• External power supply : 4.5V DC rated (4.5–6.3V with BC-196SA/SD, CP-18A/E - not inc.)
• Current drain Rated audio : 130mA typ. (Ext. SP, backlight off) (at 3.0V DC) Standby 65mA typ.
• Power save 30mA typ. (1:4 duty)
• Antenna impedance : 50Ω (SMA)
• Dimensions (W×H×D) : 58×86×29.8 mm; (Projections not included) 29⁄32×33⁄8×13⁄16 in
• Weight (approx.) : 200g; 7.1oz
