KYORITSU True-Rms Digital Multimeter Cat3 Rated Kyoritsu

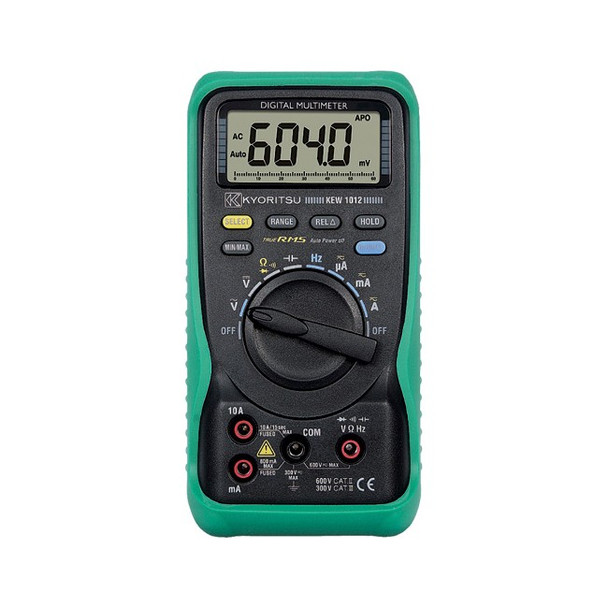

1012 Kyoritsu Compact Digital True RMS Multimeter

High performance and wide range digital multimeter from the world class manufacturer, Kyoritsu.

Wide range for various test fields!

High-powered Digital Multi Meter Series

• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation.
  • (Saving the initial value at the start of measurement as a reference value(= zero). The difference between the later measured values and the referencevalue is indicated on the display)
• True RMS can measure and indicate distorted waveforms
• DUTY function
  • (It is possible to measure Pulse width / Pulse period)
• Data Hold function, Auto Power Off function
• Continuity with buzzer and Diode Check function
• Capacity measurement of capacitors
• Current ranges are protected by fuses (600V ceramic)
• Designed to meet international safety standards


Included accessories:

• Test leads, fuse, batteries, carry case, manual.

FEATURES:

• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation
• DUTY function
• Data Hold function, Auto Power Off function
• Continuity with buzzer and Diode Check function
• Capacity measurement of capacitors
• Current ranges are protected by fuses
• Designed to meet international safety standards: IEC61010-1 CAT.III 300V / CAT.II 600V

SPECIFICATIONS:

DC V	600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) t (600.0mV/6.000/60.00/600.0V) t (600V)
AC V	6.000/60.00/600.0/600V (Input Impedance: 10MΩ) t (6.000V) t (60.00/600.0V) t (600V)
DC A	600/6000µA/60/600mA/6/10A t (600/6000µA/60/600mA) t (6/10A)
AC A	600/6000µA/60/600mA/6/10A t (600/6000µA/60/600mA) t (6/10A)
Ω	600Ω/6/60/600kΩ/6/60MΩ t (600Ω/6/60/600kΩ/6MΩ) t (60MΩ)
Continuity buzzer	0~600Ω (Buzzer sounds below 100Ω)
Diode Check	2.8V Release Voltage:Approx. 0.4mATest Current
Capacitance	40/400nF/4/40/400/4000µF
Frequency	10/100/1000Hz/10/100/1000kHz/10MHz
DUTY	0.1~99.9% (Pulse width/Pulse period) t (~10kHz)
Display	6040 Counts
Withstand Voltage	AC 3700V / 1min.
Applicable standards	IEC 61010-1 CAT.III 300V Pollutiondegree 2 IEC 61010-1 CAT.II 600V Pollution degree 2 IEC 61010-031 IEC 61326
Power Source	R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions	161(L) × 82(W) × 50(D)mm
Weight	Approx. 280g
Accessories	KTL04 (Test Lead) 0.8A/600V (Ceramic Fuse) × 1built-in 10A/600V (Ceramic Fuse) × 1built-in R6P × 2 Instruction Manual
