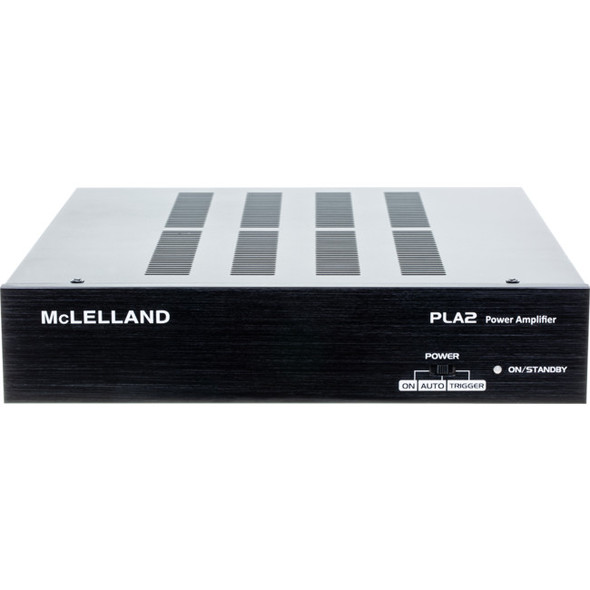

MCLELLAND 120W 2Ch Amplifier With Dante

120W RMS Two Channel Power Amplifier with Dante

Features

• Stereo into 4-8 Ohm loads
• Bridgeable for 70V or 1 00V (Direct Drive)
• Slot card with integrated Dante receiver
• Power down after -15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby
• Yellow LED (Front Panel) to indicated Standby mode is active
• Terminal Block analog audio inputs on 2 CH amp
• 2 x amplifier outputs, bridgeable to 1 channel
• Volume, Auto on/off signal sensing
• Natural cooling without Fan
• TRIGGER could be external remoting ON/OFF
• Short circuit protection
• Overheating protection

Specifications

Dante Audio Interface

• 2x2 audio channels
• I2S digital audio format
• 16, 24 or 32-bit audio samples (per device or per channel)
• 44.1 KHz, 48KHz, 88.2KHz and 96KHz sample rate

Network Interface

• Standard 100Mbps Ethernet
• RMII Ethernet interface with MDIO
• Hardware time-stamping, supporting sample-accurate playback
• Transmit flows: 2 (unicast or multicast)
• Receive flows: 2 (unicast or multicast)
• Latency from 2ms

Amplifier/ Rated Power

• 4ohm Stereo Mode = 120W (22 V) RMS output (steady state). per channel @ < 1 % THD+N
• Bohm Stereo Mode = 120W (31 V) RMS output (steady state), per channel @ < 1 % THD+N
• 70V Bridge Mode= 240 W output (steady state), per channel@ < 1 % THD+N
• 100V Bridge Mode= 240 W output (steady state), per channel@< 1 % THD+N
• 1/8 Rated Power Run Time: continuous operation
• Frequency Response: 20Hz-20kHz +0/-2dB @ 4ohm load
• Signal to Noise: >90dB A WTD
• Dimension: 214mm(W) x 249.Bmm(D) x 44mm(H)
