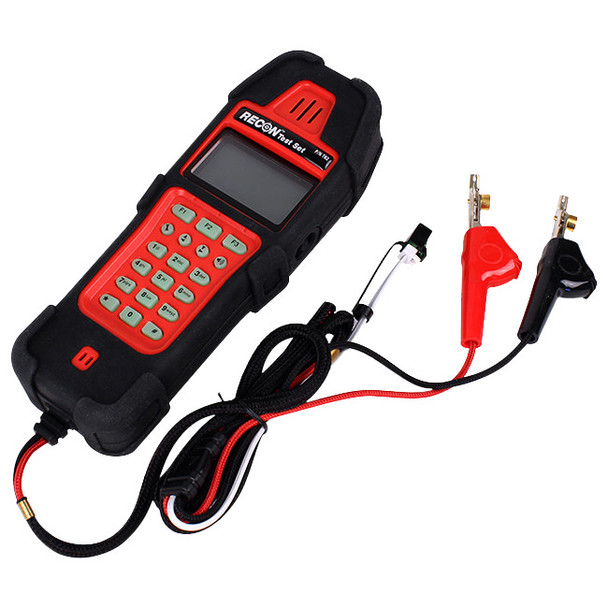

PLATINUM TOOLS Recon Test Set Line Analyzer

(No reviews yet) Write a Review
SKU:
44365020
MPN:
T62
$29.00
Frequently bought together:

Description

The T62 Recon Test Set by Platinum Tools is a self-contained, battery-powered, telecommunication line analyzer for use by installers and repair technicians. Its state-of-the-art design makes it rugged and water-resistant. The Recon Test Set is ideal for temporary communication, servicing, and installing telephone and data lines. It comes with a protective silicone boot as well as a deluxe cord set made from nylon cloth-covered test lead wire. This field instrument delivers extensive information on online conditions and status.

General Features

  • Advanced data detection & identification
  • Large backlit display for low-light environments
  • Glow-in-the-dark keypad
  • 100% data safe
  • Rugged weatherproof case, IP54 Standard
  • Drop proof (tested at 20ft)

Digital Protection Features

  • Data Defender Data line-in-use capability
  • High-line voltage detection with next-step options
  • Data measurement options
  • Active monitor circuitry minimizes load on the subscriber line
  • DTMF digit detection and display in monitor mode
  • DigitView, DTMF decode sees defects on customer equipment while dialing out
  • PwrSave circuitry for long battery life

Other Features and Functions

  • Angled Bed of Nails, piercing clip and No-Faut RJ12 Cord set with dust-cap
  • Speaker with fine volume adjustment
  • Noise cancelling microphone
  • Microphone mute with toggle on/off locking feature
  • Soft key menu system
  • Metal spring-loaded belt clip
  • Cushion boot for extra protection
  • Off-hook current and polarity
  • On-hook voltage and polarity
  • Ring amplitude and frequency
  • On-hook and call waiting caller ID info
  • Amplified Line Monitor for volume levels comparable to "off-hook" operation
  • 8 number Stored memory with Alpha/Numeric tags
  • Continuous Polarity Indication
  • Fuel gauge battery condition
  • Caller ID/Call Waiting and Caller ID error detection
  • Tone and Pulse dialing
  • Configurable Auto Off in all modes
  • Detects and identifies DSL and T1 lines
  • The last number dialed, redialed, or received
  • Backlight 0-100% adjustable with on/off option
  • Adjustable earpiece volume, hearing aid compatible

Specifications

Interface Attached cord set, 60" (152.4 cm)
Languages
English, Spanish and French
Ringer Equivalence
In BELL mode: 0.0 (no ringer load)
Pulse Dialing
Pulse rate: 10 pps ± 10%;
  Make/break ratio: 60% to 40% ±2%; USA
  Interdigit interval: 820 mS;
  Resistance during break: 120kΩ minimum
Tone Dialing
DTMF output (into 600Ω):
  Tone-frequency error: ±1.5%;
  Tone Level:
  High group: -6 ±2 dBm;
  Low group: -8 ±2 dBm;
  High group vs. Low group difference
  (twist): 2 ±1 dBm
Flash Duration
600 ±50 mS
Pause Duration
Tone: 3 seconds;
  Pulse: 3.4 seconds
Memory
8 programmable locations, 32 digits with 12 character tag, stored in non-volatile memory. Last number redial plus list of last 10 numbers dialed.
Return Loss
Minimum 14 dB at 600Ω
Line Current
10 to 110 mA
Resistance Measurement
Apparent Line Resistance:
  275Ω @ 20 mA
Impedance
Monitor Mode Impedance:
  DC: 1MΩ typical - AC: 390 KΩ @ 1 kHz typical
Measurement
Voltage: 0 to 200 VDC ±5%;
  Current: 10 to 110 mA ±5%;
  Note: Do not attach test set to electric-power lines
User Controls
1 x Left-side-mounted TALK/BELL/MON push button switches for operating modes
  1 x Right-side-mounted microphone mute pushbutton
  4 x Front-mounted pushbuttons for various options
  1 x Standard front-mounted 12-key phone keypad
Display
Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
Power
4 x AAA alkaline batteries
Battery Life
With 100% backlight and in speaker mode: 20 hours
  Backlight off and speaker off: 75 hours
  Standby: 2 years
Dimensions
8.25 x 2.5 x 2.0" (21 x 6.4 x 5.1 cm)
Weight
19.74 oz (559.7 grams) with battery, cord set and belt clip

What is in the box?

  • RECON Test Set T62
  • 4x AAA Alkaline batteries
  • User Manual
  • Angled bed of nails, piercing clip, and no-fault RJ12 cord set with dust-cap
