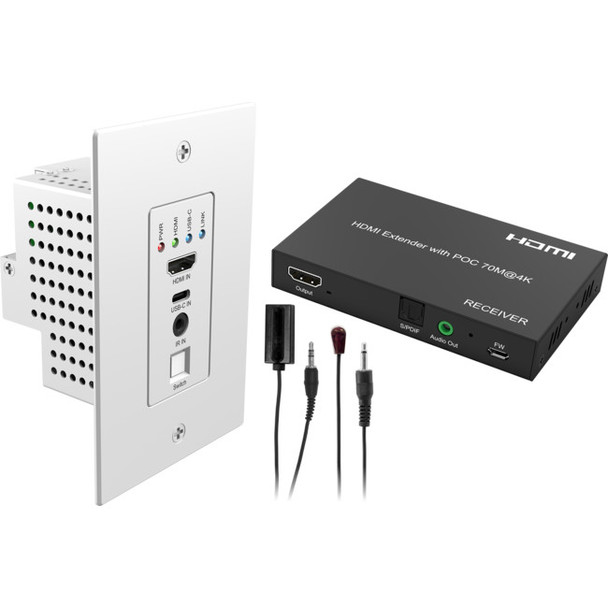

PRO2 Hdmi2.0 Usb-C Over Cat6 Wall Plate Extender 70M Usb-C Pd 65W Switch Ir Rs232 Spdif

(No reviews yet) Write a Review

SKU:: 7351043
UPC:
MPN:: HDC6WP2

$299.00

Current Stock:

Out of stock

Frequently bought together:

Description

Description

HDMI2.0 and USB Type-C 4K 60Hz up to 70M wall plate extender with IR, RS232, POC, S/PDIF, Audio extraction, PD 65W charging.

Features

HDMI2.0 + Type-C Extender in North American standard Wall plate to Box Kit
Support HDMI or USB-C input, with the Switch button on the wall plate
Transmit up to 70m(229ft) under 4K60Hz YUV4:4:4 or 1080p over a single Cat5e/6 cable
Type-C input(USB3.0) supports 4K60hz, PD power charging(65W max)
HDCP2.2/ 1.4 Compliant
Support EDID management
Support HDR10, POC and RS232 pass-through
Support one-way wide-band IR pass-through
Support S/PDIF and PCM2.0 analog audio extraction(at RX)
Support Dolby True HD, PCM, and DTS-HD master audio 7.1CH
Support RS232/ Micro USB port for firmware upgrade
Support auto-detect and switch to either one of the sources when there is a signal

Note: The USB Type-C only does the video transfer and PD charging, no data transfer.

Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables if you are running a cable 15 metres or more.

Sepcifications

Operating Temperature Range	-5 to +40°C(+23 to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Connectors on Transmitter	HDMI Input x 1, USB-C Input x 1 Power DC24V Phoenix terminal x 1, RS232 Phoenix terminal x 1 IR Receptacle x 1(for IR RX )
Connectors on Receiver	HDMI Output x 1, RS232 Phoenix terminal x 1, S/PDIF x 1, PCM2.0 x 1, IR Receptacle x 1(for IR TX), FW x 1, Power DC12V x 1
Resolution outputs	4k@60hzYUV4:4:4/ 4k@30HZ/1080p/1080i/720p/576p/576i/480p/480i
Audio format supported	DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc.
Output Video Signal	HDMI
Dimension (L×W×H)	TX: L106mm×W46mm × H60mm; RX: L110mm × W68mm × H13mm
Power supply	DC 24V/5A Power supply
Power consumption	100W(MAX)
Transmission Distance	up to 70m under 4K@60Hz YUV4:4:4, 70m under 1080P@60Hz
Net Weight	TX:130 g; RX:190g
