PRO2

PRO2 Sm Os2 Fibre Cable 250M Roll Sc/Upc-Sc/Upc Sm Dx 3.0Mm Lszh

(No reviews yet) Write a Review

SKU:: 5060920
UPC:
MPN:: FIB250M

$129.00

Current Stock: 11

Quantity:

Frequently bought together:

Description

Description

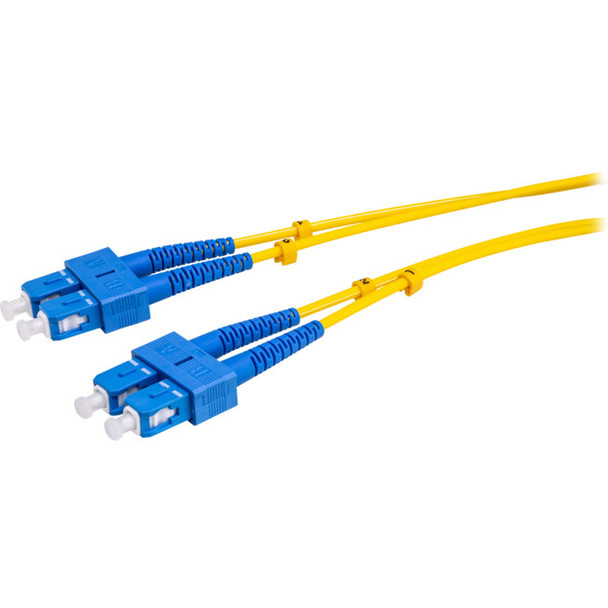

FIB250M PRO2 SM OS2 FIBRE CABLE – 250M ROLL

SC Fibre Optic Patch Cord stands for Subscriber Connector – a general purpose push/pull style connector. SC has an advantage in duplexibility to support send/ receive channels. SC Connectors are frequently used for newer network applications.

The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

Superior qualified standard PC / UPC / APC polishing
Compliant with Telcordia GR-326-Core, TIA / EIA and IEC
100% optic test (Insertion Loss & Return Loss)
Single mode, Duplex
Comply to IEC Standard
G652D OS2 standard
Flexible boot are available
PVC / LSZH

Applications

High Speed and volume Fibre Optic Transmission Systems
CATV Networks
LAN
Fibre Optic Instrumentation

Specifications

Patch Cord/Pigtail

Type	SC/UPC to SC/UPC Single Mode Duplex 3.0mm
Insertion loss	A1: 0.17dB A2: 0.10dB B3: 0.13dB B4: 0.07dB
Return Loss	A1: 52.3dB A2: 51.8dB B3: 52.0dB B4: 52.1dB
Repeatability	≤0.1dB
Durability	≥1000 matings
Operating Temperature	−40°C to +80°C
Tensile Strength(N)	≥90N (f3), ≥70N (f2)
Cable Length	250m
