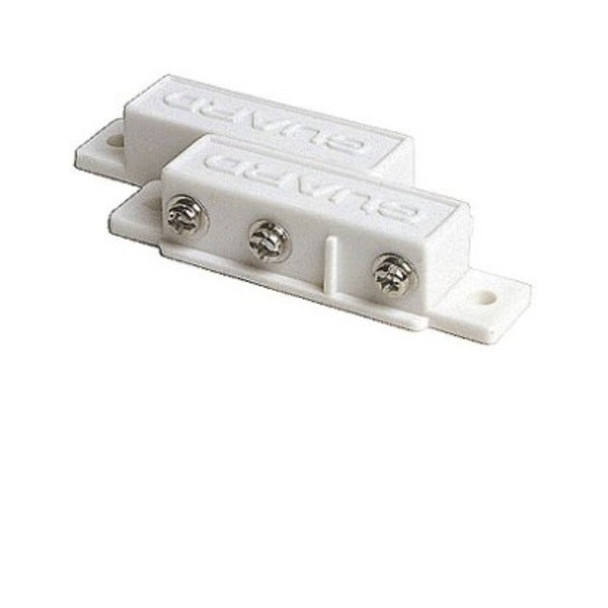

Reed Switch With N/O And N/C Screw Terminals Ms-168
- SKU:
- 1305524
- MPN:
- SR3
Frequently bought together:
Description
Standard reed switch which can be set to either N.O or N.C . White plastic housing for switch and magnet
- Can be screw mounted or attached by double sided tape provided.
- Dim.: 14 x 14 x 65mm (WHL)
Specifications
- NO & NC type, Normally open & Normally close
- Operating gap: 3cm Max
- Contact R.: 150m Ohm
- Switching current: 0.25A
- Switching voltage DC: 100V
- Electrical life: 10,000,000 Cycles
- Case: ABS
