Reliance XRPRO 8-Zone Alarm Kit

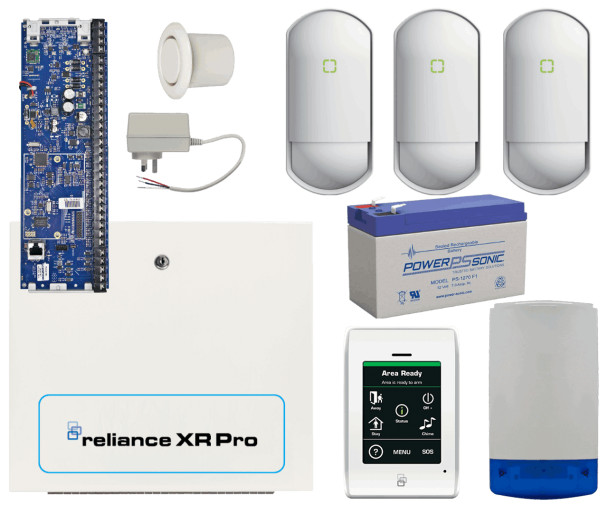

Kit Includes:
- 1 x Reliance XR PRO PCB w/ metal enclosure
- 1 x Reliance XR Touch
- 3 x Optex Flip-X PIR
- 1 x Reliance NX Combo Siren & Strobe
- 1 x Secor Tophat Piezo
- 1 x Powersonic 12VDC 5AH Battery
- 1 x Datamaster 16VAC 1.5A Powerpack
System
| Panel Type |
Hybrid |
| Max No. of Modules |
32 |
Inputs
| Onboard Physical Inputs |
8 |
| Onboard Inputs total (Zone Doubling Required) |
16 |
| Max No. of Inputs Incl. Expanders |
176 |
| Additional Inputs |
1: box tamper |
| EOL Resistor Values |
20 Ω (2-wire smoke)
3.3 kΩ, 4.1 kΩ, 4.7 kΩ (alarm)
3.74 kΩ, 6.98 kΩ (zone doubling) |
Wireless
| Max No. of Wireless Transmitters |
176 |
| Receiver Type |
Onboard - 433 MHz Legacy + LoNa 63 bit and 80plus compatible. |
Outputs
| Onboard Programmable Outputs |
4 |
| Additional Onboard Outputs |
Siren/Bell |
| Max No. of Outputs |
32 |
System Capacity
| Areas |
9 |
| Users |
256 |
| User Permissions |
128 |
| Max Keyfobs |
16 |
| Max Tablets |
4 |
| Max Keypads |
24 |
Communication
| Ethernet Connection Specification |
Supported Standard: IEEE 802.3u |
| Speed |
10BASE-T or 100BASE-TX |
| Duplex |
Half-duplex and full-duplex |
| Cabling |
FTP (foiled twisted pair) Cat 5e cable or better |
| Databus Type |
Reliance XR, Reliance, NetworX (NX) |
| Reliance XR Bus |
Type: 4 wire RS485 bus High common mode tolerance (25V)
Range: 800m
Recommended Cable: Belden 7201A, 3107A, 9842, or exact equivalent 2 pair twisted shielded cable designed for RS485 (refer to installation manual) |
Event Log
Mains Power Specifications
| Mains Input Voltage |
230 VAC +10%, −15%, 50 Hz ±10% |
| Transformer Output |
16.3 VAC 24 VA / 16.3 VAC 48 VA |
| Current consumption at 230 VAC |
240 mA max |
Power Supply Specifications
| Power Supply Voltage |
13.8 VDC +/- 0.4 V |
| Power Supply Current |
2 A max. at 13.8 VDC +/- 0.4 V |
| Main Board Consumption |
130 mA at 13.8 VDC +/- 0.4 V |
| Maximum System Current Available |
2000 mA at 13.8 VDC +/- 0.4 V |
| Auxiliary Power Output (AUX. Power) |
13.8 VDC +/- 0.2 V, 1 A max. |
| Battery Power Output (BAT) |
13.8 VDC +/- 0.2 V, 350 mA max. |
| Battery Type |
Lead acid rechargeable 7.2 Ah 12 V nominal |
| Minimum Voltage |
9.45 VDC |
| Maximum Voltage at Power Supply, Auxiliary Power Output, and Battery Power Output |
14.5 VDC |
| Battery Low Condition |
From 11.3 VDC to 11.8 VDC |
| Battery Disconnect Voltage |
9.77 VDC |
| Maximum Ripple Voltage V, p-p |
200 mV typical, 400 mV max |
Physical (with Enclosure)
| Physical Dimension |
292 x 291 x 91 mm (enclosure only) |
| Shipping Weight |
2075g |
| Colour |
Beige |
| Material |
Metal |
Physical (Board Only)
| Physical Dimension |
273 x 89 x 25 mm (Enclosure ony)
437 x 291 x 91mm (with Antenna) |
| Shipping Weight |
210g |
Environment
| Storage Temperature |
−10°C to +55°C |
| Relative Humidity |
95% non-condensing |
| IP Protection Grade (in Enclosure) |
IP30 |
Regulatory
| ANZ Compliance |
CE, RCM |
| Overseas |
EN50131 Grade 2, INCERT |
