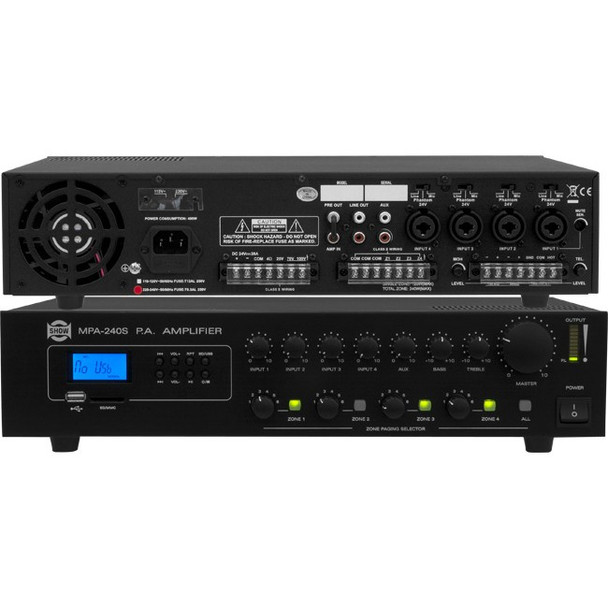

SHOW 240W 4-Zone Mixer Amp Mp3 Amplifier Paging Selector

(No reviews yet) Write a Review
SKU:
1455105
MPN:
MPA240S
$709.00
Frequently bought together:

Description

MPA240S 240W 4-ZONE MIXER AMP

The MPA240S professional mixer amplifier allows for 4 microphone and 1 aux input. It also has 4 independent zone outputs. MPA240S includes a MP3 player which will accept SD and USB flash memory cards. It is economical, versatile and easy to use.

Features

  • Output: RMS 240W / MAX 330W
  • Power supply: 115V/ 230V AC switchable, 24V DC
  • 4 MIC (XLR) inputs; MIC. / LINE / PHANTOM exchange SW
  • 1 AUX (RCA) input; 2 Tone (BASS/ TREBLE)
  • 4 Input volume controls; TEL. input/ MONITOR function
  • PRE output and AMP input
  • MP3 player has SD/ MMC/ USB interface
  • 4 zones paging selection

Specifications


Power Output (at 4Ω) RMS 240W/ MAX 330W
Frequency Response 80Hz-16kHz (±3dB)
Power Supply 115V / 230V AC, 50Hz / 60Hz switchable; 24V DC
Input / Sensitivity
  • Mic: −52dBv balanced
  • Phantom: −52dBv / 24V balanced
  • Line: −10dBv balanced
  • Aux: −20dBv
  • AMP. in: 0dBv
  • TEL: −10dBv
Harmonic Distortion ≤1%
S/N Ratio
  • MIC: ≥65dB
  • AUX: ≥80dB
  • PHANTOM: ≥65dB
  • LINE: ≥5dB
Output (Ω) COM, 4Ω
Output (V) 25V, 70V, 100V
Zone Out 4 Zones paging selection Z 1~Z 4: 100V
Controls
  • 1 AUX volume control
  • 1 MASTER volume control
  • 2 TREBLE/BASS controls
  • 4 Input volume controls
  • TEL. input & MONITOR volume controls
  • 5 Zone out selector switch
BGM Module MP3-300: MP3 player
Dimensions (W×D×H) 420mm × 260mm × 88mm (16.5″ × 10.2″ × 3.5″)
Weight (Approx.) 11kg (24.4lbs)
