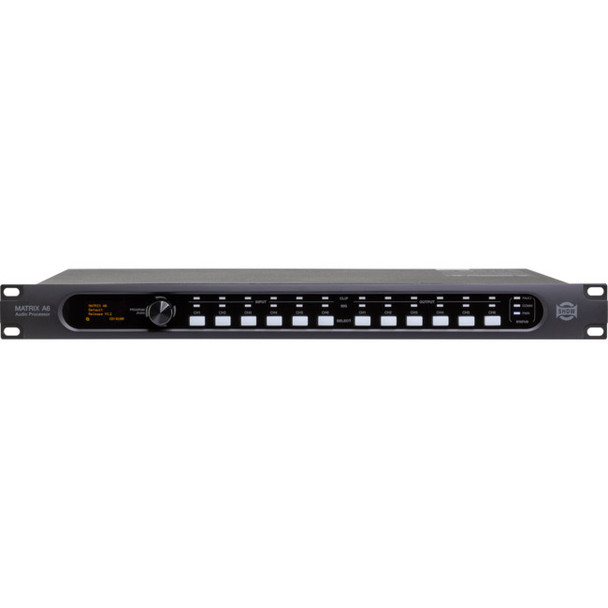

SHOW Digital Audio Matrix Processor 6 Analog In X 6 Analog Out

(No reviews yet) Write a Review
SKU:
1455180
MPN:
MATRIX-A6
$1,039.00
Frequently bought together:

Description

MATRIX-A6 is a dedicated music, paging, discussion, and zone management solution for commercial audio applications. It has 6 inputs and 6 outputs in a single device powered by a state-of-the-art DSP platform.

Features

  • 6 analog IN x 6 analog OUT
  • 8 Dante in x 8 Dante out (Dante module option)
  • Expandable up to 96 Inputs and 96 outputs with 16 units of the Matrix-A6
  • 4 Volume Controller ports (remote devices)
  • Fix architecture for easy and quick operation
  • Intuitive GUI with PC editor software
  • DSP functionalities: PHASE / DELAY / COMP / ANC / AGC
  • 200-meter maximum transmission distance from the remote controller to the Remote Device port
  • Rack-mountable
  • RS232 connection
  • Balanced analog inputs and outputs

Specifications

Modle MATRIX-A6
Connectors Euroblock 3 x 6-pin, 5mm pitch
CODEC 32-bit, 48K/96K
MIC/ Line Inputs Active balanced
Gain Settings +10 to +60dB,1dB steps
Input Impedance 6.8KΩ
Phantom Power(±3V) +48VDC
THD+N < 0.03%, typ 20Hz-20KHz, 0dBu A-Weight
Maximum Input +20dB
Frequency Response 20Hz-20KHz, at 0dBu- 1.5dB A-Weight
Dynamic Range 108dB
Crosstalk <-88dB, at 20Hz-20KHz, 0dB, CH to CH
Digital Gain Range 0~-48dB Steps=12dB
Outputs Active balanced
Impedance 200Ω
Maximum Output +20dBu
Frequency Response 20Hz~20KHz at 0dBu ±1.5dB A-Weight
Dynamic Range 108dB
Crosstalk <-88dB, at 20Hz-20KHz, 0dB, CH to CH
Indicators
Signal -40dBu Green LED
Overload +19dBu Max, A-Weighted
DSP
Processor 32/64-bit Floating Point
Power Supply 100-240V/50~60Hz
Dimension (W x H x D) 483 x 44 x 256 mm (19.02 " x 1.73" x 10.08 ")
