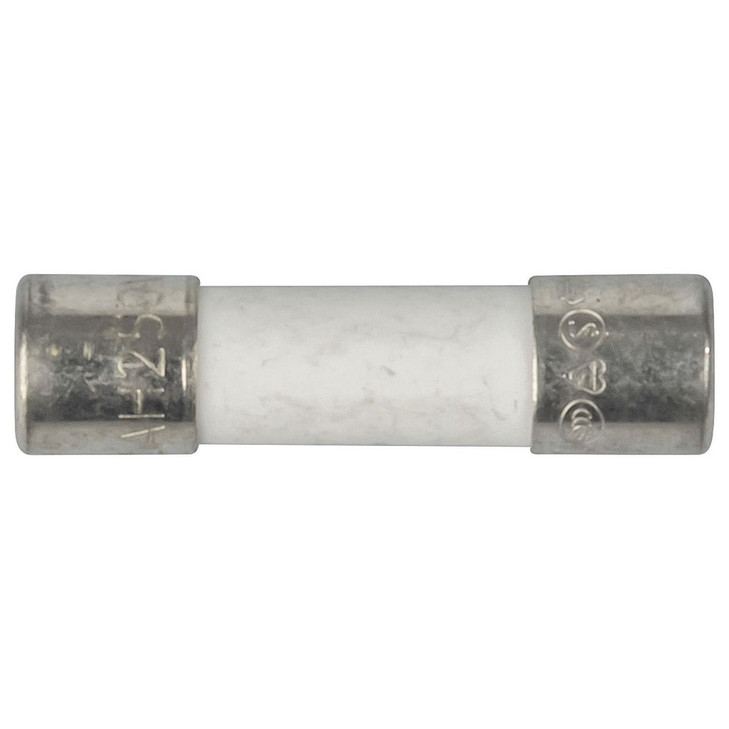

A ceramic fuse offers better thermal and arc protection during a high current episode compared to a glass fuse with the same specifications. Sometimes marked with an S or T before the current rating (for example T3.15A), these delayed action fuses allow for a temporary current surge without going above the fuse's current rating. Because of this, time delay fuses are most commonly used in applications where a large momentary load is expected such as motors at start-up.
Fuse
| Fuse Type | M205 |
|---|
| Blow Speed | Slow blow |
|---|
| Case Material | Ceramic |
|---|
| Rated Current | 1.6A |
|---|
Packaged Dimensions

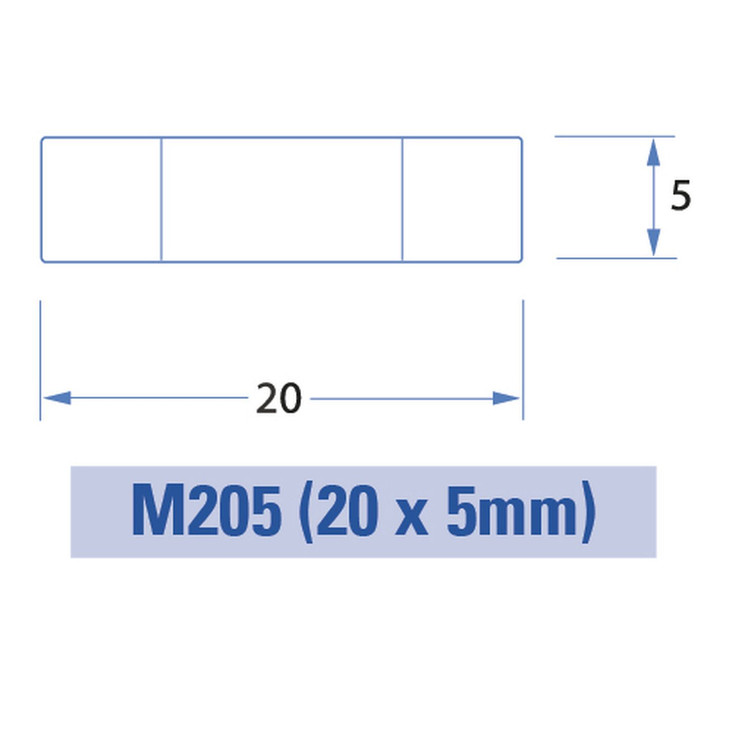

| Packaged Dimensions | 0.5cm(Length) x 0.5cm(Width) x 2.0cm(Height) |
|---|
