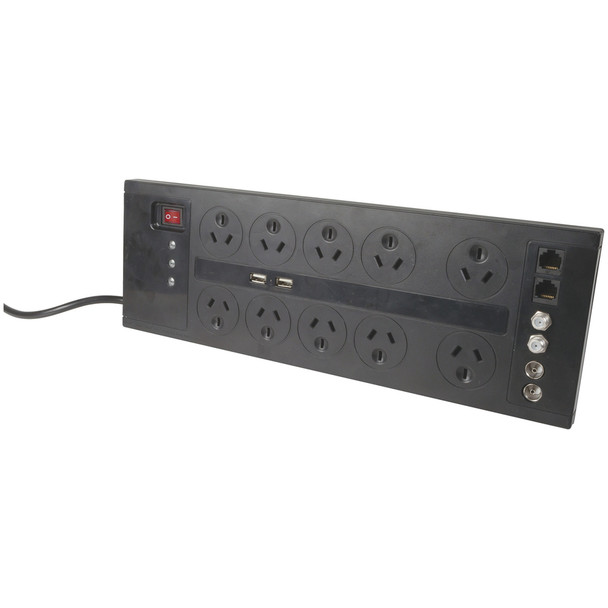

10 Way Home Theatre Surge Protected Powerboard

(No reviews yet) Write a Review
SKU:
MS4033
UPC:
9319236705988
$109.00

Description

This is the perfect addition to your home theatre, music gear or home office setup. This powerboard features 10 surge and spike protected sockets, including 2 wide sockets for large power adaptors. It also includes 2 USB ports for charging smartphones and tablets. Surge protection and EMI/RFI filtering protect against mains power fluctuations, with each socket protected three ways: active, neutral and earth. Additional protection is provided by the built-in circuit breaker. This powerboard also has telephone and data protection (for a network connection), satellite/cable TV video protection, and protection for your TV antenna.

Features:
• Separate Telephone/Data Line & TV Antenna/Cable TV Protection
• 144,000A Surge Protection
• 2 USB Charging Sockets
• 2 Extra Wide Sockets

Power Filter:
Surge Protection: Metal Oxide Varistors
Supply Voltage: 250VAC
Current Rating: 10A max. 2500W
Protection Mode: A-N, N-E, E-A
Max Surge Current: 144,000A
Typical Capacitance: 400pF
Clamping Voltage (@50A): <775V
Energy Absorption: 4300 joules
Response Time: <2ns
Filtration: EMI/RFI

Telephone Line:
Filter Type: Gas Tube Arrestor
Surge Current: 1200A (1kV/µs)
Impulse Discharge Current: 10kA (8/20µs)
Capacitance: <5pF
Clamping Voltage: 600V
TV Surge Protection: Gas Tube Arrestor
DC Strike Voltage: 230V to max. 600V
Surge Current: 4500A
Energy Dissipation: 225 joules
Response Time: <10ns

Included:
1 x 1.8m TV Coax Plug to TV Coax Plug
1 x 1.8m RJ45 to RJ45
1 x 1.8m RJ12 to RJ12
1 x 1.8m F61 Plug to F61 Plug
2 x RJ45 to RJ12 reducers


SPECIFICATIONS
Product Dimensions
Width 125mm
Height 32mm
Length 360mm
Power Leads
Lead Length 1m
Retractable Lead
Input Type Mains AU/NZ 3 Pin
Input Connection Plug
Output Type Mains AU/NZ 3 Pin
Output Connection Socket
Output Quantity 10pc
Power Connection Adaptors
Input Type Mains AU/NZ 3 Pin
Input Connection Plug
Output Type Mains AU/NZ 3 Pin
Output Quantity 10pc
USB Charge Port 2pc
Output Connection Socket
Surge Protection
Protection Device Metal Oxide Varistor
Maximum Surge Current 144000A
Energy Absorption 4300J
Response Time 2ns
Clamp Voltage 775V
Additional Surge Protection
Clamping Voltage 600V
Additional Surge Protection RJ12
Additonal Filter Type Metal Oxide Varistor
Surge Current 1200A
Imulse Discharge Current 10000A
Capacitance 5pF
Mains powered
Mains Max Current 10A
Max Input Power 2500W
Mains Voltage Range 230V-240V
Frequency 50Hz
Rated for AU Mains
Mains Item connection Mains AU/NZ 2 Pin (No Earth)
Mains lead included
Mains Lead Length 1m
USB Powered
USB Voltage Output Range 5V
USB Current Output 1A-2A
Has USB power output?
USB Connectivity
Number of USB ports 2pc
Supported USB Standards USB 2.0
Powerboard or Multi-adaptor
Number of Sockets 10pc
Type of adaptor Power Board
Global Switch
Individual Switches
Illuminated Switches
EMI Filter
RFI Filter
Warranty: 12 Months
