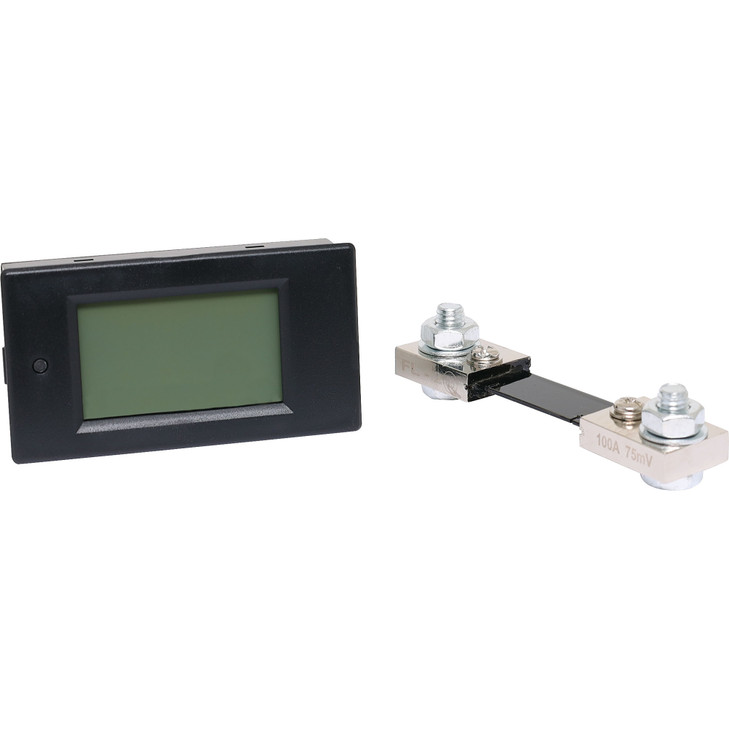

Designed for dedicated high-current solar / battery installations with a massive 100A capacity. Suitable for voltages up to 100V, it covers systems up to 10kW (100A max). Wiring is made through a heavy duty current shunt for maximum reliability. Provides details on power, voltage, and current, as well as aggregation of power throughput (which can mean generation or usage depending on your installation) with an easy reset function. Bright blue backlit display provides easy reading in any lighting conditions.
Features:
Features:
- Real time information
- Large backlit display
- Total energy throughput
Specifications:
Specifications:
Power Consumption: 0.2W
Measurement frequency: 0.5s
Measures Voltage DC
| DC Volts Measurement Range | 6.5V,6.5V |
|---|
Measures Current DC
| DC Current Accuracy | 1% % |
|---|---|
| Current DC Measuring Range | 100.0A,100.0A |
Display Screen
| Screen Type | Flat Panel Screen (LCD) |
|---|
Measures Power
| Instantaneous Power Ranges | 10.0 W |
|---|---|
| Power Consumption Ranges | 9999.0 kWh |
Product Dimensions
| Width | 90.0 mm |
|---|---|
| Height | 50.0 mm |
| Depth | 25.0 mm |
| Weight | 6.2 kg |
Packaged Dimensions
| Packaged Dimensions | 18.0cm(Length) x 12.0cm(Width) x 3.0cm(Height) |
|---|
