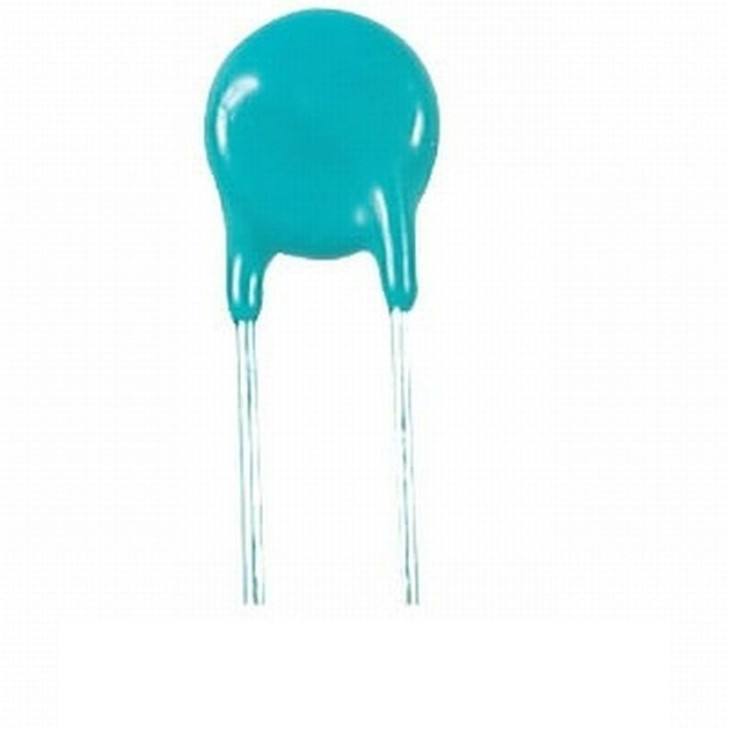

These devices are made of a special ceramic material which changes resistance value rapidly with temperature change. They are commonly used to check thermal runaway with bipolar transistor amplifiers etc, but really have dozens of other uses. They are rugged and very reliable.
Features:- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead
Passive Component
| Passive mount type | Through Hole |
|---|
| Passive connector type | Solder Legs |
|---|
| Component package | Radial |
|---|
| Passive number of legs | 2.0 count |
|---|
| Pitch | 5.0 mm |
|---|
| Component Type | Thermistor |
|---|
| Pack Quantity | 1.0 pc |
|---|
Power Rating
Thermistor
| Resistance | 100.0 kΩ |
|---|
| Thermistor Temperature Range | -20.0°C-125.0°C |
|---|
| Thermal Dissipation Constant | 6.0 mW/°C |
|---|
| Temperature Coefficient | Negative (NTC) |
|---|
DC Current Rating
Packaged Dimensions
| Packaged Dimensions | 0.5cm(Length) x 0.2cm(Width) x 3.7cm(Height) |
|---|
