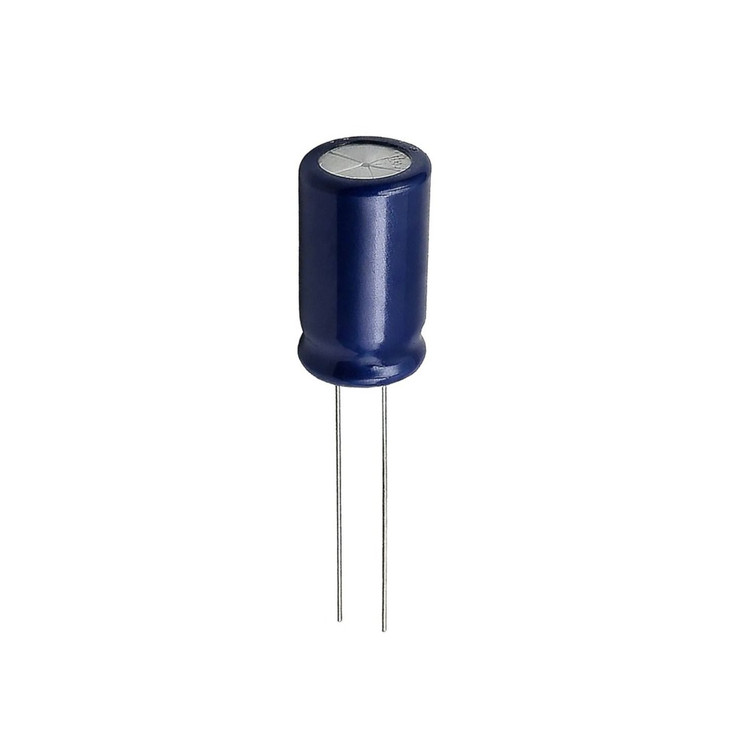

An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.
Features:
Ripple Current mA: 45
Mounting: RB - PC Mount
Capacitor
| Capacitor type | Electrolytic |
|---|
| Polarised Capacitor | true |
|---|
Passive Component
| Passive mount type | Through Hole |
|---|
| Passive connector type | Solder Legs |
|---|
| Component package | Radial |
|---|
| Passive number of legs | 2.0 count |
|---|
| Passive marking code | Printed |
|---|
| Pitch | 2.0 mm |
|---|
| Component Type | Electrolytic Capacitor |
|---|
| Pack Quantity | 1.0 pc |
|---|
Operating Temperature and Humidity
| Operating Temperature | 105.0 °C |
|---|
DC Voltage Rating
Capacitance Rating
Electrolytic Capacitors
| Component Package | Solder Legs |
|---|
| Capacitor Type | Electrolytic |
|---|
| Polarised Capacitor | TRUE |
|---|
| Passive Mount Type | Through Hole |
|---|
| Passive Connector Type | Radial |
|---|
| Passive Number of Legs | 2.0 |
|---|
| Passive Marking Code | Printed |
|---|
| Pitch | 3.5mm |
|---|
| Component Type | Capacitor |
|---|
| Pack Quantity | 1.0 |
|---|
| DC Voltage | 50V |
|---|
| Item Capacitance | 100µF |
|---|
Product Dimensions
| Height | 11.0 mm |
|---|
| Diameter | 5.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 3.1cm(Length) x 0.5cm(Width) x 0.5cm(Height) |
|---|
