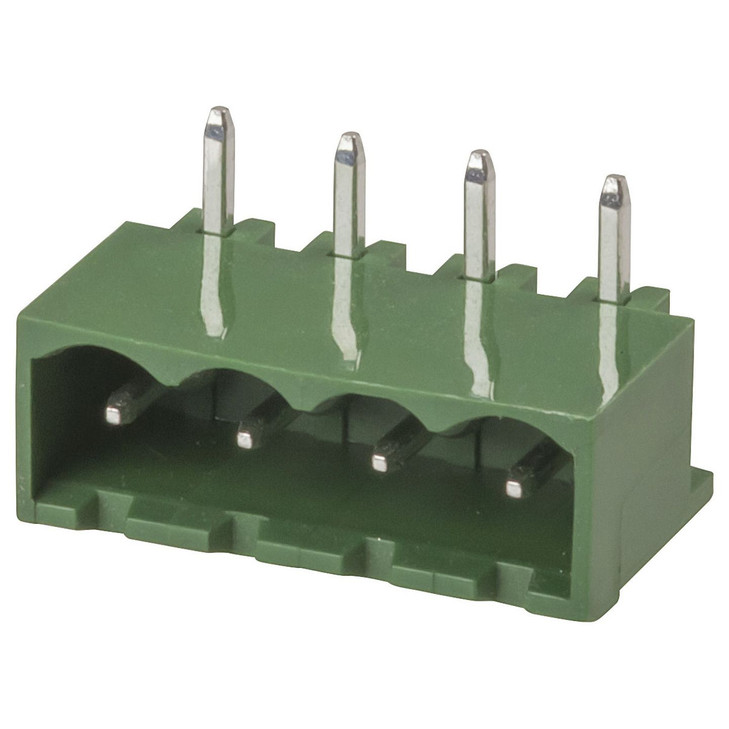

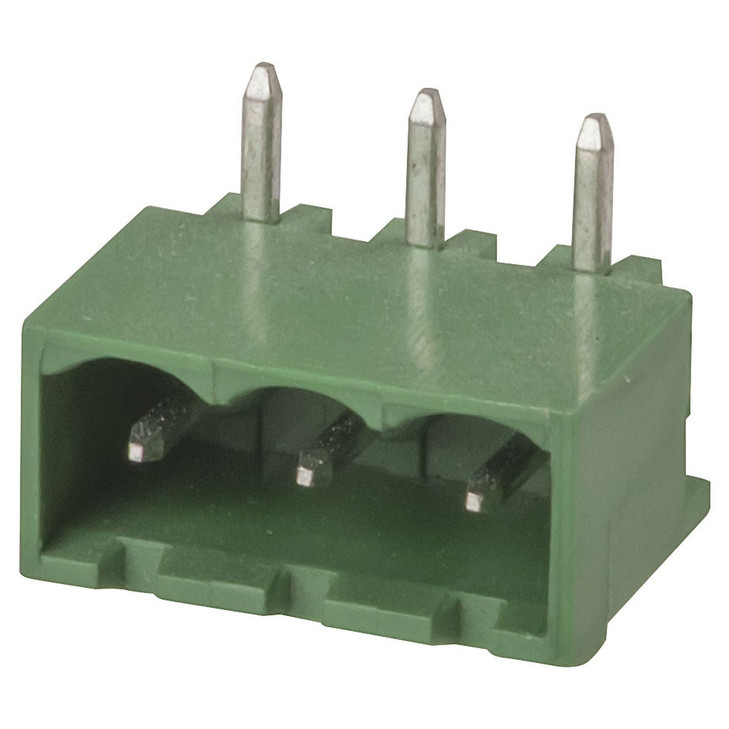

Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks.
- Made from Polyamide66 plastic (UL94V- 0)
- 1.0mm tin- plated brass solder pins
- PCB hole diameter: 1.5mm
AC Voltage Rating
AC Current Rating
Terminal Blocks
| Type | Header |
|---|
| Device | Horizontal |
|---|
| Number of Contacts | 2.0 |
|---|
| Body Material | Polyamide 66 |
|---|
| Colour | Green |
|---|
| Terminal Spacing | 5.08mm |
|---|
| Attachment Method | PCB Solder |
|---|
| AC Voltage Rating | 300V |
|---|
| AC Current Rating | 12A |
|---|
Header Connections
| Type | Single Row Header |
|---|
| Pack Quantity | 1.0 pc |
|---|
| Number of Pins | 2.0 pc |
|---|
| Pin Spacing | 5.08mm (0.2") |
|---|
| Pin Size | 1.0 mm |
|---|
| Insulation Dielectric Voltage Rating | 2000.0 V |
|---|
| Insulation Resistance | 5000.0 MΩ |
|---|
| Pin Material | Tin Plated Brass |
|---|
| Device | Plug |
|---|
| Attachment Method | PCB |
|---|
Packaged Dimensions
| Packaged Dimensions | 1.3cm(Length) x 1.2cm(Width) x 1.3cm(Height) |
|---|
