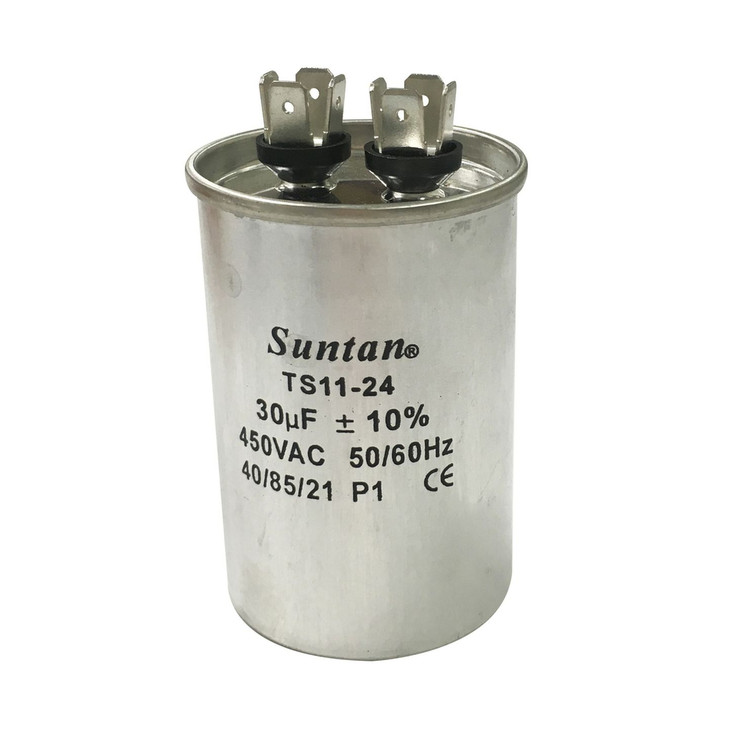

These capacitors are designed to replace the original capacitor that has failed. You must replace the part as the motor may simply not work, draw excessive current or have poor torque.
These are suitable for motors operating at up to 450VAC and common values are offered here. Please note it is important to choose the correct value for the motor otherwise the starting torque of the motor will change.
Capacitor
| Capacitor type | Motor start |
|---|
Passive Component
| Passive mount type | Chassis |
|---|
| Passive connector type | Spade Terminals |
|---|
| Component package | Metal can |
|---|
| Passive number of legs | 2.0 count |
|---|
| Passive marking code | Printed |
|---|
| Component Type | Polypropylene Capacitor |
|---|
| Pack Quantity | 1.0 pc |
|---|
DC Voltage Rating
Capacitance Rating
| Item capacitance | 20.0 µF |
|---|
| Capacitance tolerance | 5.0 % |
|---|
Product Dimensions
| Height | 75.0 mm |
|---|
| Diameter | 45.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 9.8cm(Length) x 4.8cm(Width) x 4.9cm(Height) |
|---|
