Part Pins Description

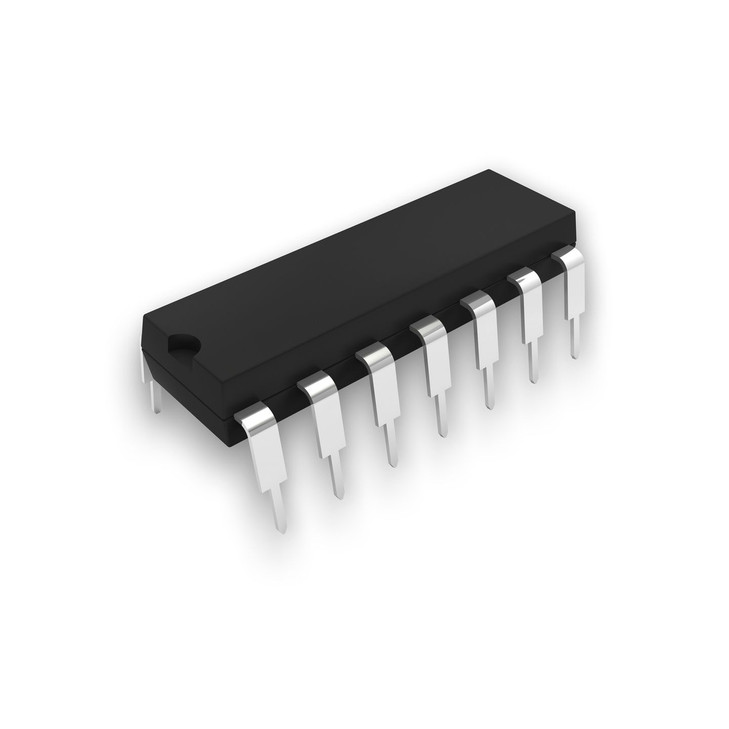

4071 14 Quad 2 input OR gate
4071 14 Quad 2 input OR gate
Integrated Circuit (IC)
| IC supply voltage | 3.0 V |
|---|---|
| IC Static Sensitive | true |
| IC op amp | false |
| IC Pin Count | 14.0 units |
Active Component
| active mount type | Through Hole |
|---|---|
| active connector type | Solder Legs |
| component package | DIL |
| active number of legs | 14.0 count |
| active marking code type | Printed |
| max temperature | 85.0 °C |
| minimum temperature | -40.0 °C |
Packaged Dimensions
| Packaged Dimensions | 2.0cm(Length) x 1.0cm(Width) x 1.0cm(Height) |
|---|
