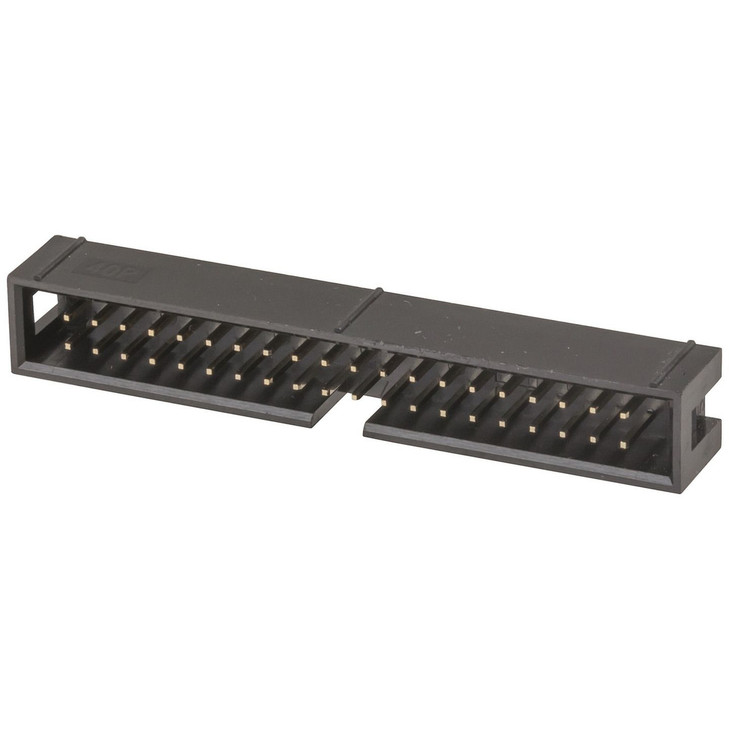

Vertical facing 50 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.
Header Connections
| Type | Double Row Header |
|---|
| Number of Pins | 50.0 pc |
|---|
| Pin Spacing | 2.54mm (0.1") |
|---|
| Pin Material | Gold Plated |
|---|
| Device | Plug |
|---|
| Attachment Method | IDC |
|---|
| header locking | true |
|---|
Headers & IDC
| Type | Double Row Header |
|---|
| Pack Quantity | 1 pc |
|---|
| Number of Pins | 50.0 |
|---|
| Pin Spacing | 2.54mm |
|---|
| Pin Size | 0.64mm* |
|---|
| Insulation Dielectic Voltage Rating | 500V* |
|---|
| Insulation Resistance | 1000MΩ* |
|---|
| Operating Temperature | 105°C* |
|---|
| Device | Plug |
|---|
| Attachment Method | IDC |
|---|
| Header Locking | Yes |
|---|
| Header Polarised | Yes |
|---|
| Mating Force | 200g* |
|---|
Packaged Dimensions
| Packaged Dimensions | 8.5cm(Length) x 3.0cm(Width) x 0.8cm(Height) |
|---|
