600 Ohm / 600 Ohm Telephone Isolation Transformer

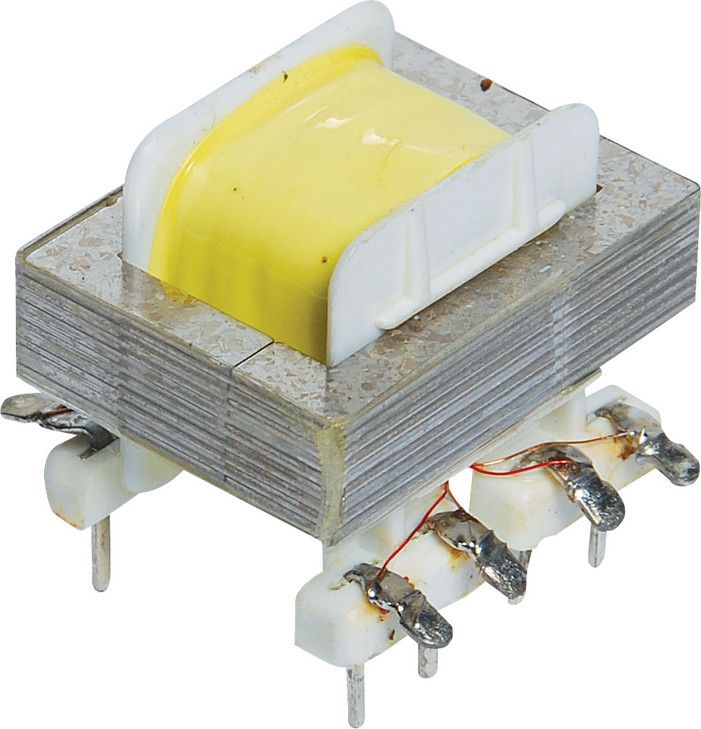

Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. Turns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 200Hz - 3KHz Return Loss: >15dB, 200Hz - 3kHz Max...

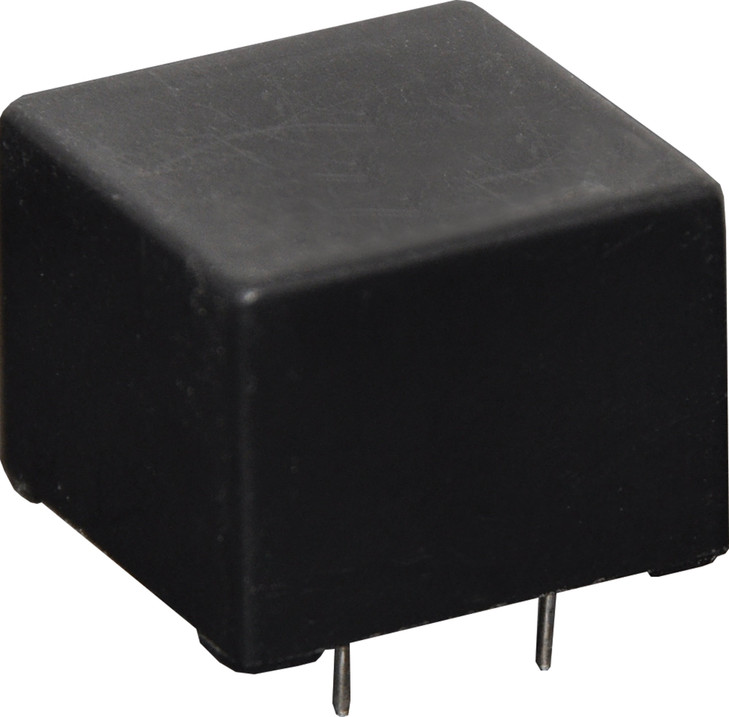

Impedance: 600 Ohm line, 600 Ohm equip. Turns Ratio: 1:1 Max Level: 0dBm Insertion Loss: 1.4dB max @ 1kHz Return Loss: >16dB @ 300Hz - 3.5kHz Proof Test: 3.0kV AC 1 minute Dimension: 12L x 11H x...

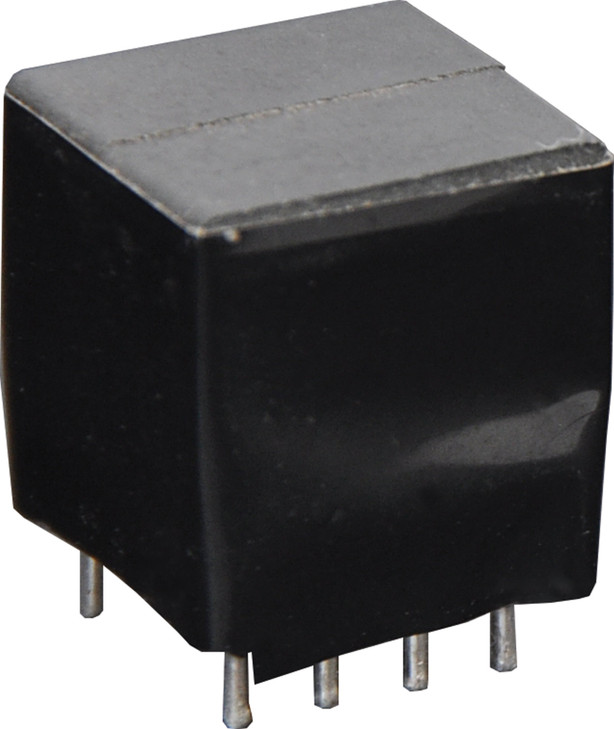

Impedance: 600 Ohm line matching Turns Ratio: 1:1 Insertion Loss: 4.7dB max @ 2kHz Frequency Response: 200Hz - 4kHz Return Loss: >15dB @ 200Hz - 4kHz Proof Test: 5.5kV RMS Max Unbalanced DC:...

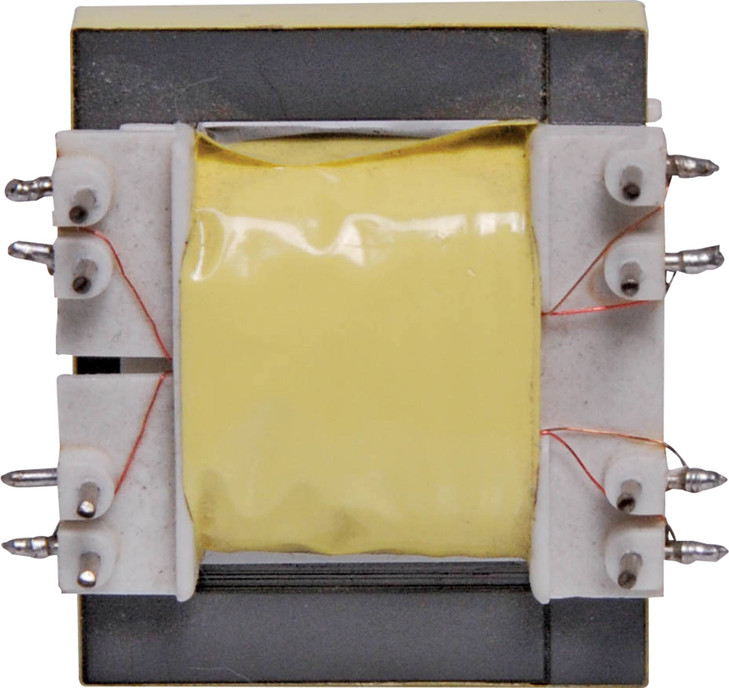

Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. urns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1.8dB max @ 0dBm Frequency Response: 300Hz - 3kHz Return Loss: >15dB, 300Hz - 3kHz Max...

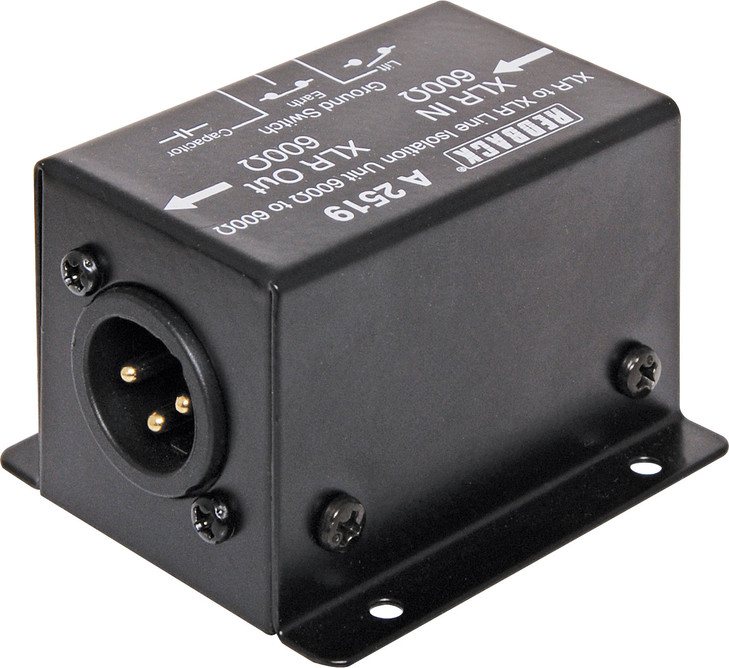

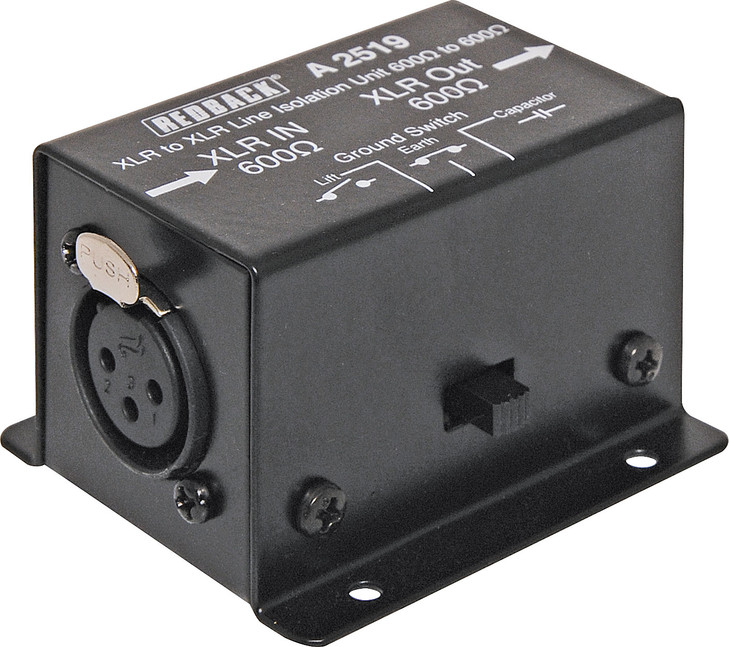

This unit is designed as an isolation unit to prevent hum loops in audio systems. Balanced 600Ω to balanced 600Ω 3 pin male XLR with ground, lift and capacitive coupling switch. Dimension Drawing
