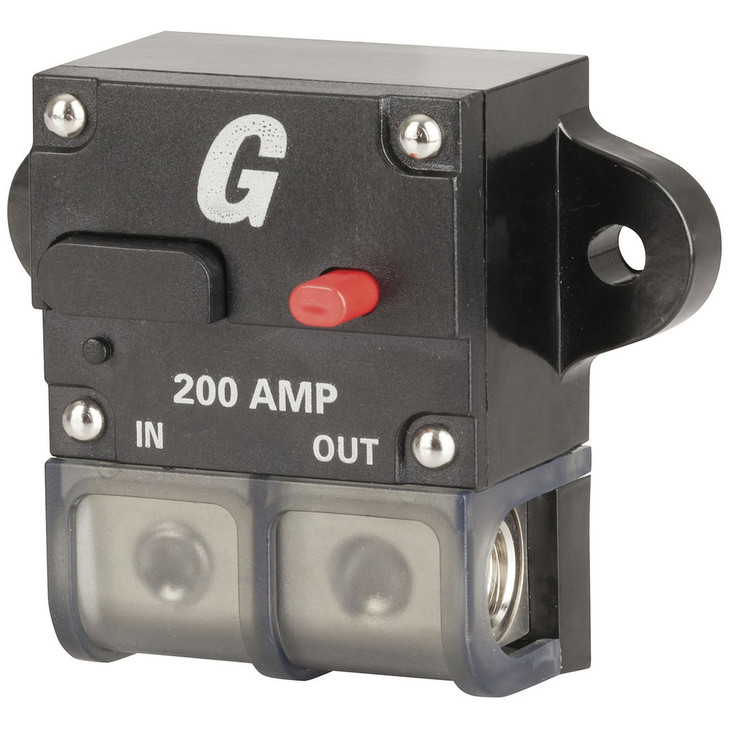

The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated. Not IP rated for water or dust protection.
Features:
- Rated maximum 60A current
- Rated maximum voltage 32VDC
- Trip-free operation
- Built-in brass block suits 0AWG wire
- Switchable/manual push-to-trip operation
- Visible trip indication
- Prominent trip/circuit breaker button
Circuit Breakers
| Circuit Breaker Type | High current |
|---|
| Circuit Breaker Current | 60.0 mA |
|---|
| Circuit Breaker Pole Count | 1.0 units |
|---|
DC Voltage Rating
Product Dimensions
| Width | 85.0 mm |
|---|
| Height | 68.0 mm |
|---|
| Depth | 35.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 15.0cm(Length) x 14.0cm(Width) x 5.0cm(Height) |
|---|
