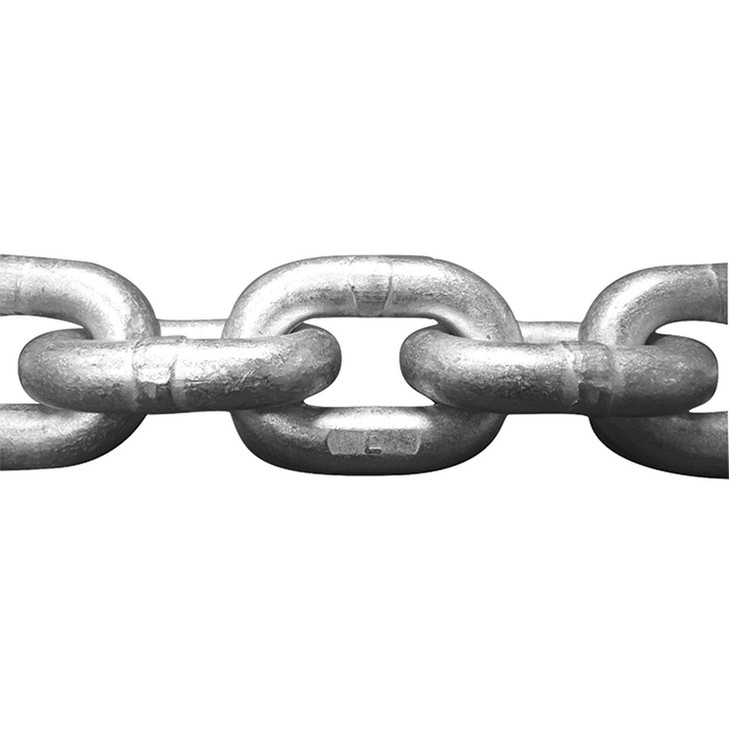

Grade L is low carbon steel chain specifically manufactured to Australian Standard AS2321-2006. Used for anchoring and mooring applications, Grade L calibrated short-link design ensures proper fit for most Australian windlasses.
- Hot dip galvanised for best protection against corrosion and abrasion
- Can be purchased by the metre or drum
| Cat. No. | Link Dia. | Pitch/Width | Max Working Load | Breaking Strength | Drum Size/Weight |
| MAC282 | 6mm | 18mm/7.5mm | 445kg | 1818kg | 60m/48kg |
| MAC284 | 8mm | 24mm /26mm | 818kg | 3272kg | 34m/48kg |
| MAC286 | 10mm | 30mm/32.5mm | 1270kg | 5090kg | 22m/50kg |
| MAC288 | 13mm | 39mm/42.3mm | 2045kg | 8181kg | 13m/50kg |
Note: Pitch = Inside Length
MAC282 6mm Short Link Grade 'L' (G30) Calibrated Chain
MAC284 8mm Short Link Grade 'L' (G30) Calibrated Chain
MAC286 10mm Short Link Grade 'L' (G30) Calibrated Chain
MAC288 13mm Short Link Grade 'L' (G30) Calibrated Chain
Packaged Dimensions
| Packaged Dimensions | 100.0cm(Length) x 2.7cm(Width) x 2.7cm(Height) |
|---|
