features
JOS-1AW includes JO-DA - Plastic surface mount camera and Power supply
7 INCH TOUCH SCREEN HANDS-FREE VIDEO INTERCOM SYSTEM WITH SMART PHONE CONNECTION
JO Series with smartphone connectivity. Enhanced convenience and security for your home and office
Answer calls anywhere inside or outside your home- Handledeliveries when not at home - Open your door from anywhere
Simple Installation
Connect all units in the system with just 2 wires.
Automatic updates ensure you always have the latest functionality and security
- Easy operation by 7-inch touch screen
- Total hands-free communication
- Zoom and wide screen
Video Recording
Record visitors even when not able to answer calls.
View the recordings from the master station or your smartphone.
Video memory
- Internal memory :10 calls(max)
- SD card :1,000 calls(max)
- Touch screen operation micro SD micro SDHC (4GB~32GB)
Touch Screen Operation
- Smartphone connection
- Control whether calls are forwarded to mobile devices.
- Notifications
- Confirm system updates and other important notifications.
- Play
- Play and manage call recordings.
- Monitor
- Monitor your door.
- Settings
- Manage system settings.
- Door release
- Operate the electrie lock connected to the masterstation.
- Option output
- Control external devices connected to the master station.
- Talk
- Communicate with the door stations
System Configeration
-
Max system Configeration
1 x Door - 2 x Room - 8 x Smartphone
Optional second wired Room station - JO-1FD can also be installed ( Note requires 2 x 2 core cable )
Door Station Options
Select from 3 different styles.
All options can handle tough weather conditions. .
JO-DA - Plastic surface mount camera
- IP54 - Dust and moisture resistant
- Nighttime LED
JO-DV - Vandal resistant metal surface mount camera
- IP54 - Dust and moisture resistant
- Ruggedized against vandalism
- ZINC material
- Nighttime LED
JO-DVF - Stainless Steel Flush fitting camera
- IP54 Dust and moisture resistant
- Ruggedized against vandalism
- STAINLESS STEEL material
- Nighttime LED
Smartphone Application provides connectivity everywhere
- Have the functionality of the master station in your pocket
- Answer calls from the door station.
- Monitor the door station.
- Operate electric locks while answering a call
- Control external devices while answering a call
- Switch between speakerphone mode and telephone mode asnecessary
- Zoom in and zoom out functions.
Connect your smartphone in 3 simple steps
1 Install application
- INTERCOM APP TypeB (iOS) INTERCOM APP TypeB (Android)
2 Register with master station
- Register by using a one-time password. PASSWORD 1234PASSWORD 1234
- No need to provide email or other personal details
3 Done
- Wi-Fi master station Smartphone or Tablet Have the functionality of the master station in your pocket
Compatible with existing JO series
specifications

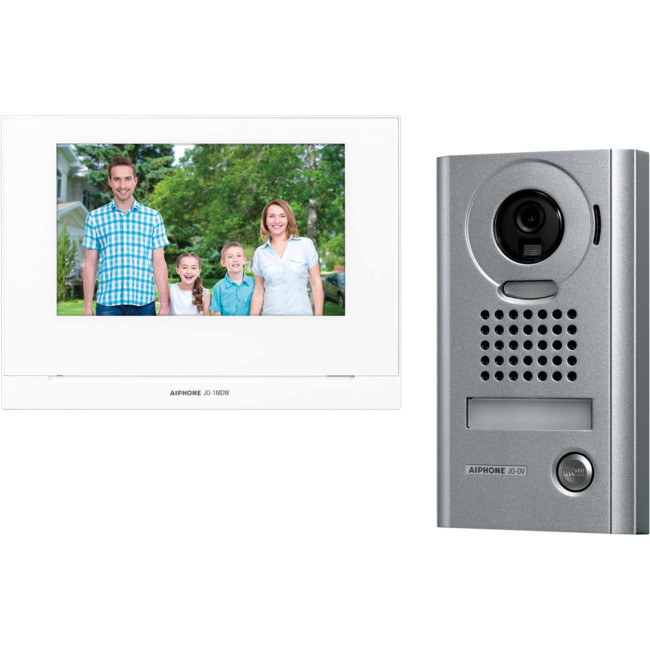

JO-1MDW
| 18V DC, Supplied from a power supply |
| 450mA(max.) 80mA(standby.) |
| 7’’ TFT LCD touch screen |
| 800×480 (approx.384,000 pixels) |
| Open voice hands-free auto-voice actuation or Touch-to-talk communication |
| 0-40 degrees Centigrade |
| IEEE802.11b/g/n |
| Internal memory: 10 calls(max.) (10 seconds/call) SD card: 1,000 calls(max.)(10 seconds/call) |
| Internal memory: 5 calls(max.) micro SDHC card: 100calls(max.) |
| micro SDHC card: 4GB-32GB |
| 24V AC/DC, 1A (N/O dry closure contact) |
| 24V AC/DC, 1A (N/O dry closure contact) |
| Surface wall mount |
| Unit case: Self-extinguishing PC + ABS resin Surface panel: Glass |
| Approx.620g |
JO-DA
| Supplied from Master monitor station or Expansion monitor station |
| Open voice hands-free communication |
| 1/4 inch color CMOS |
| -20~+60°C(-4~+140°F) |
| Surface wall mount |
| Self-extinguishing PC + ABS plastic |
| Approx.200g |
| IP54 |
| - |
JO-DV
| Supplied from Master monitor station or Expansion monitor station |
| Open voice hands-free communication |
| 1/4 inch color CMOS |
| -20~+60°C(-4~+140°F) |
| Surface wall mount |
| Front panel: Zinc die cast. Main unit:Self-extinguishing PC + ABS resin |
| Approx.200g |
| IP54 |
| IK08 |
JO-DVF
| Supplied from Master monitor station or Expansion monitor station |
| Open voice hands-free communication |
| 1/4 inch color CMOS |
| -20~+60°C(-4~+140°F) |
| Flush mount (Mounts on built-in back box) |
| Front panel: Stainless steel. Main unit: Self-extinguishing PC + ABS resin |
| Approx.200g |
| IP54 |
| IK07 |
