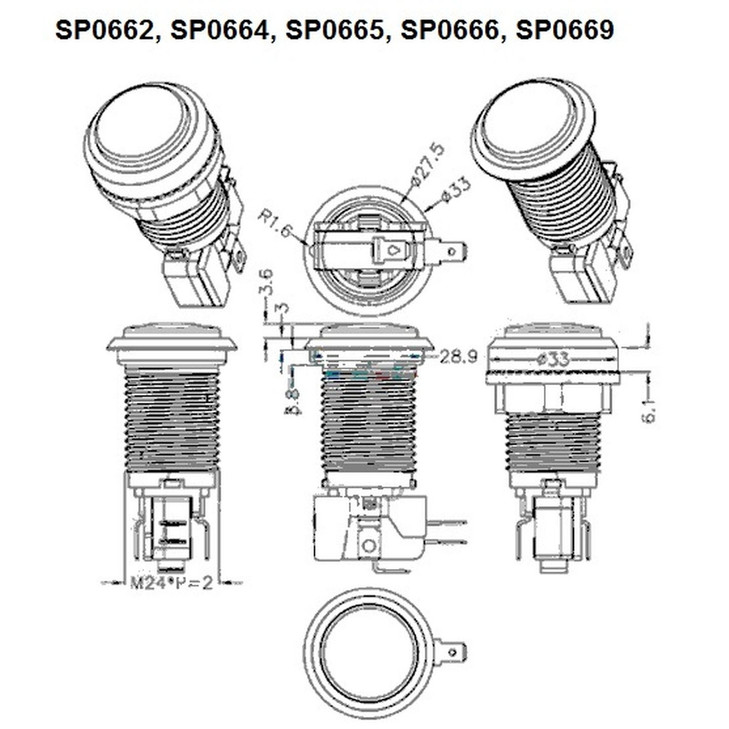

Brightly coloured illuminated pushbutton switches ideal for creating a custom arcade machine, or even use as a large illuminated pushbutton for a control panel. Suits 25mm mounting hole.
• Microswitch for reliable operation
• All connections are 6.3mm spade
• Includes LED illumination
Different colours are available:-
Red: SP0662
Yellow: SP0664
Green: SP0665
Blue: SP0666
White: SP0669
Pushbutton Switches
| LED Type | LED |
|---|---|
| Switch Type | Pushbutton |
| Poles / Contacts | 1.0 pole |
| Throws / Positions | 2.0 pos |
| Switch Function | Momentary |
| Mechanism Material | Plastic |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Blue |
| Pole Throw Type | SPDT |
| AC Voltage Rating | 250V |
| AC Current Rating | 5.0A |
| Illumination Colour | Blue |
| Nominal Voltage | 12V |
| LED Connection | Spade Terminals |
Packaged Dimensions
| Packaged Dimensions | 7.0cm(Length) x 5.0cm(Width) x 3.5cm(Height) |
|---|
