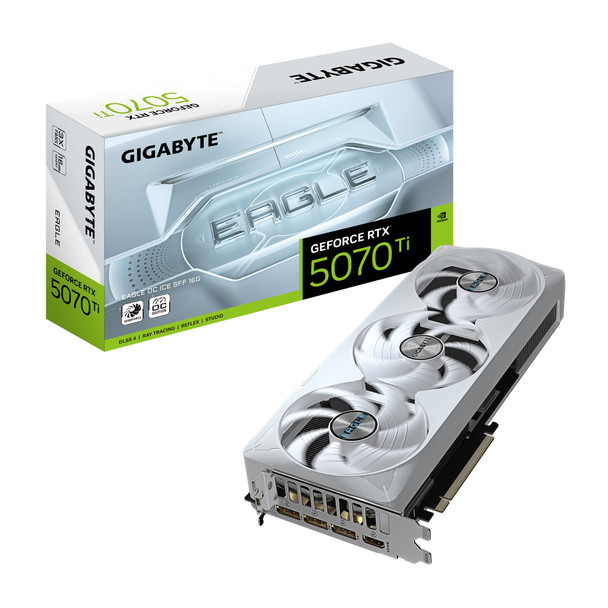

Gigabyte GeForce RTX™ 5070 Ti EAGLE OC ICE SFF 16G, 2542 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W,DisplayPort 2.1b HDMI 2.1b x1
SPECIFICATION
Graphics Processing
GeForce RTX™ 5070 Ti
Core Clock
2542 MHz (Reference: 2452 MHz)
CUDA® Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin*1
Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. VGA manual
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.
DYNAMIC PULSATING VISUAL
The side panels adopt a layered metal plate design to enhance the depth and dynamics of the pulsating elements. Combined with subtle blue lighting effects, it crafts an immersive sci-fi visual aesthetic.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENCE IN ESSENTIAL
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
Manufacturer SKU: GV-N507TEAGLEOC ICE-16GD
Warranty: 36
