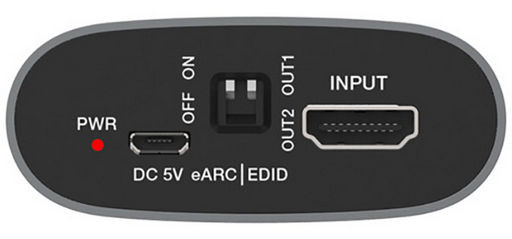

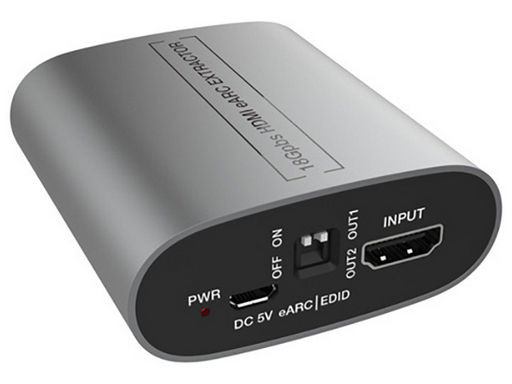

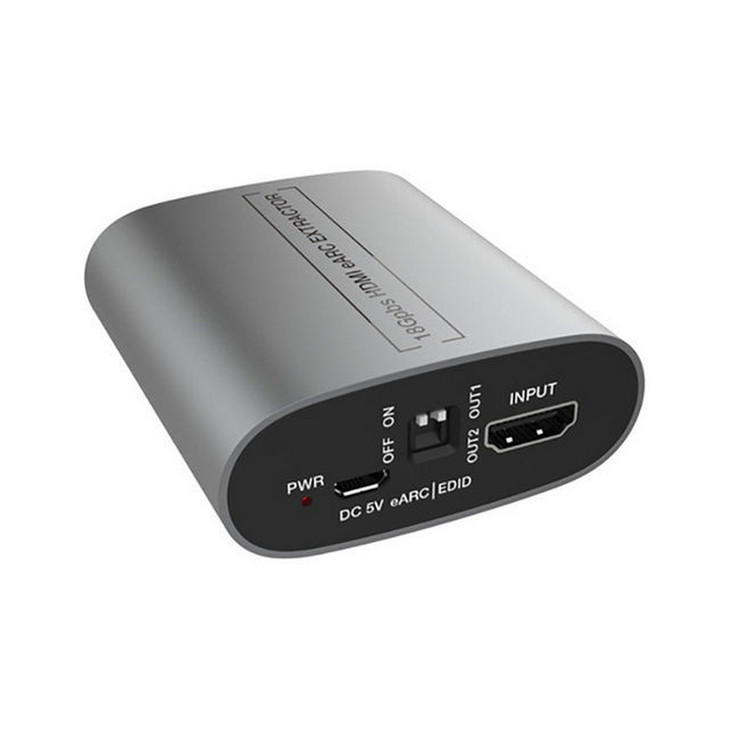

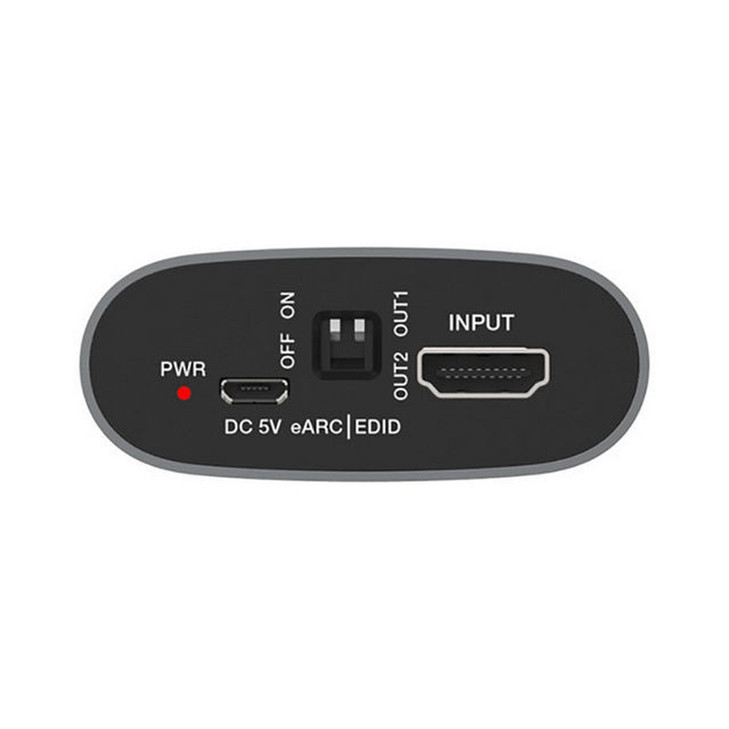

48GBPS HDMI EARC AUDIO EXTRACTOR
- HDCP 2.3 compliant. Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit. Support VRR, ALLM, QMS, QFT, and SBTM. Support HDR, HDR10, HDR10+, and Dolby Vision pass-through. Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master,DTS:X Audio pass-through. HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R and HDMI audio to output. HDMI input source is de-embedded to any eARC/ARC soundbar to output. Support full Audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC& Beam or any eARC soundbar. Support CEC control from TV to the source. Support CEC volume control from TV to any eARC sound system. Advanced EDID management. Dimensions: 145x68x18mm.
