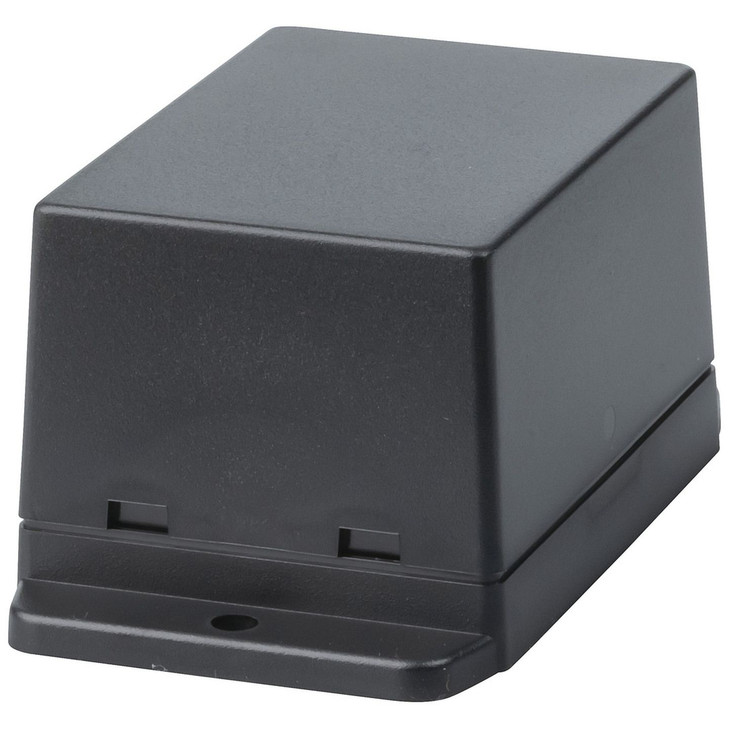

Features:
- Operating temperature: -20 to 80 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Flange to allow mounting after the box has been sealed
Enclosures and Boxes
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
|---|
| PCB Internal Guide Slots | true |
|---|
| Internal Mounting Posts | true |
|---|
| Gasket sealing system | true |
|---|
| Gasket Material | Neoprene |
|---|
| Lid Screws | 4.0 pc |
|---|
| Ventilation Holes | false |
|---|
Product colour
Ingress Protection Rating
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
|---|
| Liquid/Moisture Ingress Protection | 5 - Water jets |
|---|
| IP Rating | IP65 |
|---|
Product Dimensions
| Width | 64.0 mm |
|---|
| Height | 35.0 mm |
|---|
| Depth | 58.0 mm |
|---|
| Weight | 155.0 g |
|---|
| Dimension details | Box Dimensions |
|---|
Carton 1 Dimensions
| Width | 94.0 mm |
|---|
| Depth | 58.0 mm |
|---|
| Dimensions details | Base Dimensions |
|---|
Packaged Dimensions
| Packaged Dimensions | 12.3cm(Length) x 7.6cm(Width) x 4.3cm(Height) |
|---|
