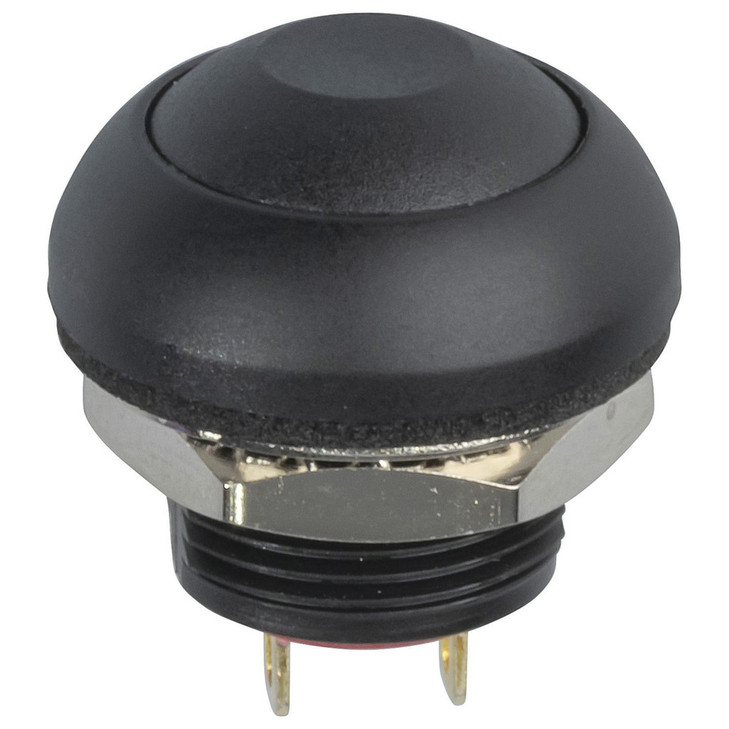

IP67 rated for harsh environments, low profile dome shape, momentary action.
Black: SP-0656
Red: SP-0657
Specifications:- 32VAC @400mA
- 50VDC @100mA
- 125VAC @125mA
Pushbutton Switches
| Switch Type | Pushbutton |
|---|
| Poles / Contacts | 1.0 pole |
|---|
| Throws / Positions | 1.0 pos |
|---|
| Switch Function | Momentary |
|---|
| Mechanism Material | Plastic |
|---|
| Switch Connection | Solder Tags |
|---|
| Switch Colour Coded | Red |
|---|
| Pole Throw Type | SPST |
|---|
Ingress Protection Rating
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
|---|
| Liquid/Moisture Ingress Protection | 7 - Immersion up to 1m |
|---|
| IP Rating certificate | true |
|---|
| IP Rating | 67.0 |
|---|
Electromechanical Switch
| Switch Type | Pushbutton |
|---|
| Poles / Contacts | 1.0 pole |
|---|
| Throws / Positions | 1.0 pos |
|---|
| Switch Function | Single Action Momentary |
|---|
| Mechanism Material | Plastic |
|---|
| Switch Connection | Solder Legs |
|---|
| Switch Colour Coded | Red |
|---|
| Pole Throw Type | SPST |
|---|
DC Voltage Rating
DC Current Rating
| DC current rating | 100.0 mA |
|---|
Packaged Dimensions
| Packaged Dimensions | 1.5cm(Length) x 1.7cm(Width) x 1.7cm(Height) |
|---|
