IR SYSTEM SINGLE EMITTER LINX-IR

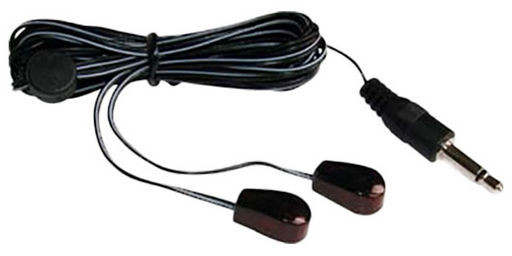

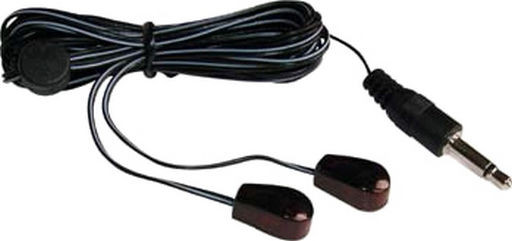

Plugs into IR305 and emits the IR Signal to equipment Two LEDs on separate 1.75M leads to a single 3.5mm plug

Remote control central Outputs emitter ports to Discrete IR Channel A Discrete IR Channel B or the common channel. Seven 3.5mm connections Includes power supply

IR receiver module and flat target. Sends IR signals via CAT5 UTP cable back to the IR305. Up to 60 metres (requires cable).

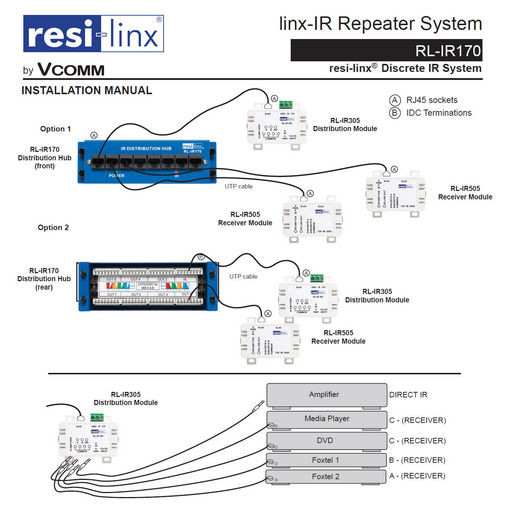

Connect multiple IR505 to one IR305. Distributes UTP cable in a radiating pattern to multiple receiver zones. Connect via IDC terminals or RJ45. Eight connections in total (7 to 1).
