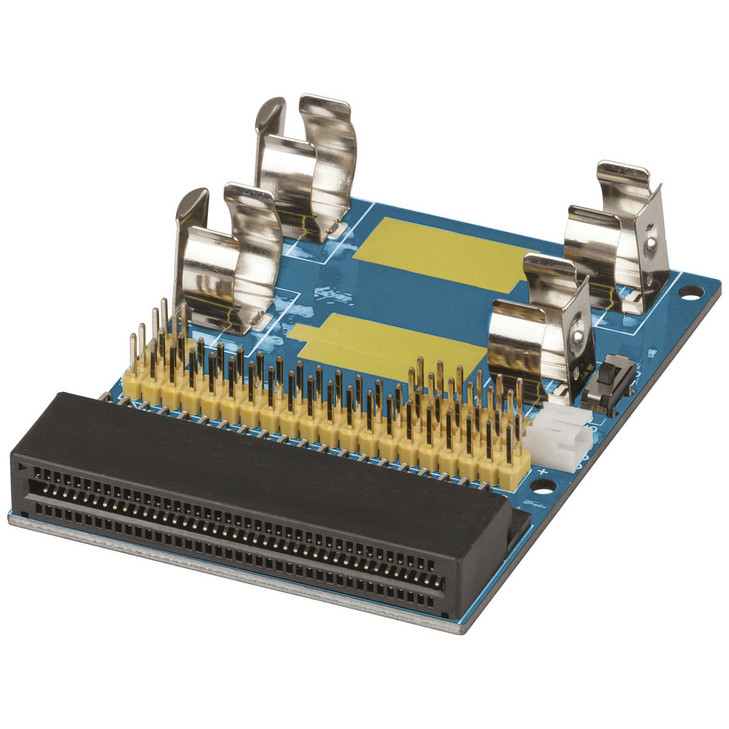

This board is a versatile expansion board designed to enhance the capabilities of the BBC Micro: Bit by enabling it to control DC motors and other peripherals. This board is particularly useful for robotics and DIY electronics projects.
Key Features
- Motor Driver Chip: Equipped with the TB6612FNG dual H-bridge motor driver, allowing control of two DC motors.
- Current Capacity: Each channel supports a continuous current of up to 1.2A, with peak currents of 2A and 3.2A.
- Motor Control Modes: Supports four modes: Forward, Reverse, Brake, and Stop.
- PWM Support: Compatible with PWM frequencies up to 100 kHz for precise speed control.
Voltage Regulation: Includes integrated 3.3V and 5V voltage regulators, providing stable power outputs for additional modules.
3-Pin Interfaces: Features multiple 3-pin headers for easy connection to sensors and other devices.
Serial Communication Port: Facilitates connection with Bluetooth modules and other serial devices.
Product Dimensions
| Length | 70.0 mm |
|---|---|
| Width | 58.0 mm |
| Height | 20.0 mm |
| Weight | 100.0 kg |
| Cable length | 0.0 m |
| Diameter | 58.0 mm |
Packaged Dimensions
| Packaged Dimensions | 6.0cm(Length) x 9.5cm(Width) x 1.0cm(Height) |
|---|
