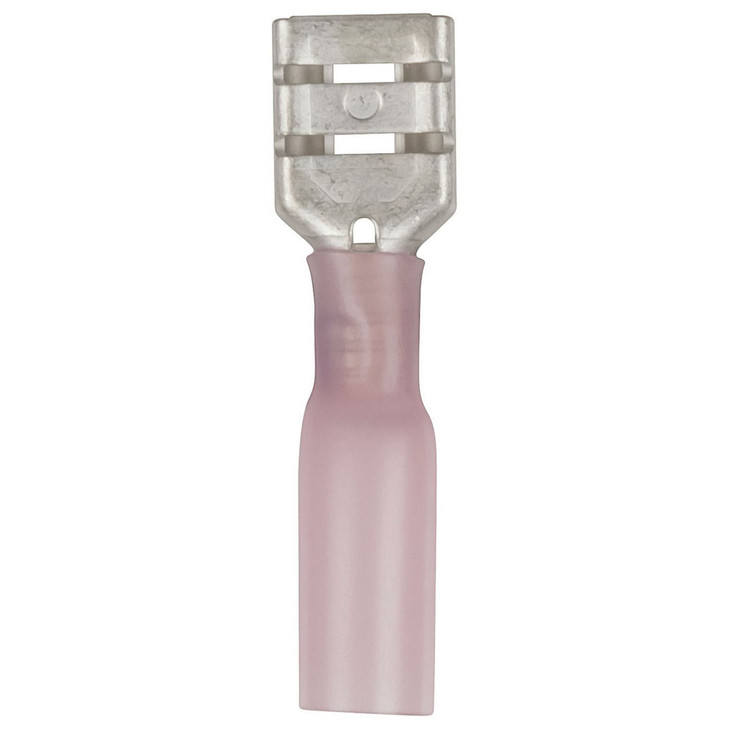

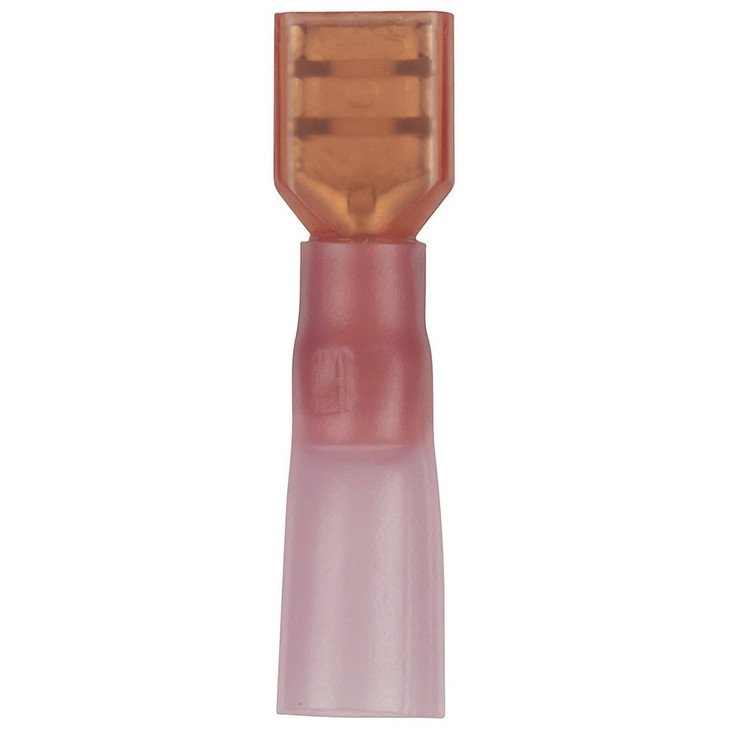

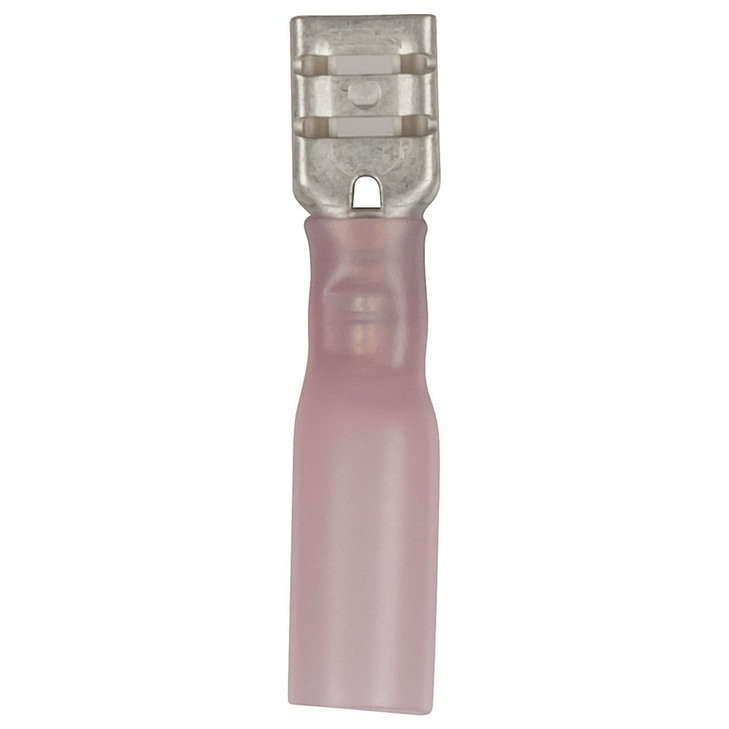

Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
Quick Connect (QC) Lugs
| Type of quick connector | Spade |
|---|---|
| Terminal Size | 6.4 mm |
| Cable Entry Diameter | 4.1mm,4.1mm |
| Wire Diameter | 1.0mm-1.0mm |
| Insulation | Heatshrink Sleeve |
| Colour Coded | Red |
| Pack Quantity | 8.0 pc |
| Device | Plug |
Quick Connectors
| Device Type | Heat Shrink QC |
|---|---|
| Outer Diameter | 4.3mm |
| Pack Quantity | 8.0 |
| Wire Gauge | 22-18 AWG |
| Wire Diameter | 1.0mm |
| Insulation | Nylon |
| Colour | Red |
| Attachment Method | Crimp |
| Wire Size (Cross Section) | 1.0mm² |
| Contact Material | Copper |
| Terminal Size | 6.4mm |
| IP Rating | IP67 |
Product Dimensions
| Width | 6.4 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 11.9cm(Length) x 6.3cm(Width) x 1.7cm(Height) |
|---|
