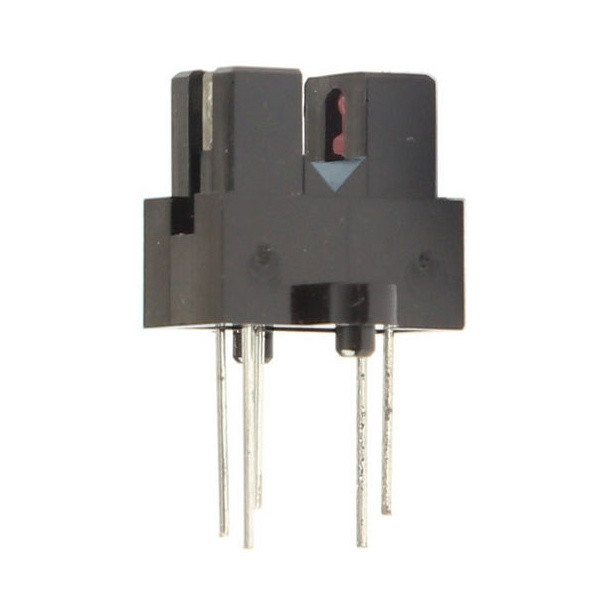

This device enables you to turn a circuit on and off optically. It consists of a moulded plastic housing with an IR LED facing a phototransistor across a gap. Any object in the gap will interrupt the IR beam and consequently switch the phototransistor on and off.The device is very fast and ideal for counting, timing or sensing.Full specs supplied with each unit.
FEATURES:
- PCB or chassis mounting
- Low cost- Rugged one piece construction
- Very fastAPPLICATION:
- Counter sensor
- Tachometer
- Opto ignition
- Edge sensor
- Tape end sensor.
Active Optocoupler
| Optocoupler Type | Photo interrupter |
|---|
| Optocoupler Operating Current | 50.0 mA |
|---|
| Reverse Voltage | 5.0 V |
|---|
Active Component
| active mount type | Through Hole |
|---|
| active connector type | Solder Legs |
|---|
| component package | radial |
|---|
| active number of legs | 4.0 count |
|---|
| diameter of leg | 0.38 mm |
|---|
| leg distance | 2.54 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 6.0cm(Length) x 7.0cm(Width) x 108.2cm(Height) |
|---|
