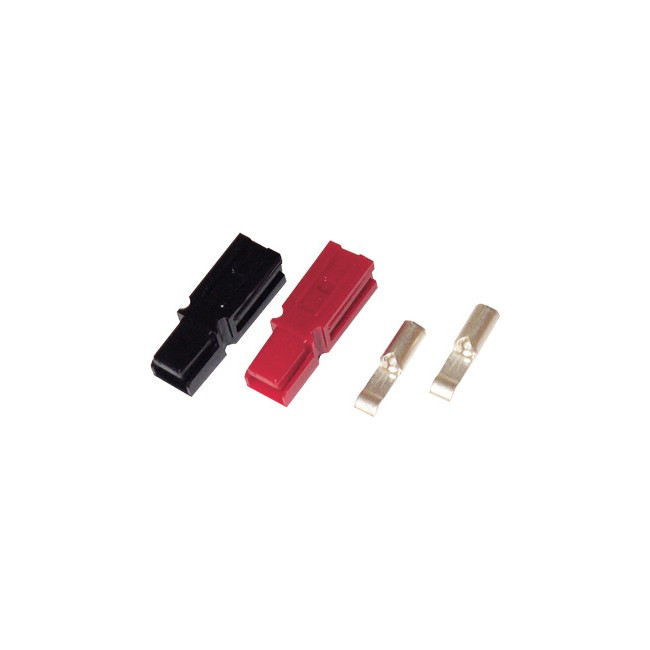

- 75A Anderson Connectors
- At last! A high current DC connector.
- These industry-standard connectors are used in automotive, marine, aviation, mining and most widely in industry.
- They are the standard electric forklift track connector for example.
- The body of the connector is cleverly designed to ensure correct polarity mating.
- They are ideal for high current car wiring connectors.
- Current Rating: 75A
- Voltage: 600V (AC or DC)
- Contact Barrel Wire Size (min/max): 8.4 - 33.6mm2 / #6- #16AWG
- Maximum Insulation Dial to fit into back of housing: 11.10mm
- Insertion Life (Cycles): 10,000 no load / 250 hot load(35A @ 12VDC)
- Operating Temp: -20 - 105 degrees C
- Flammability: UL94 V-O
