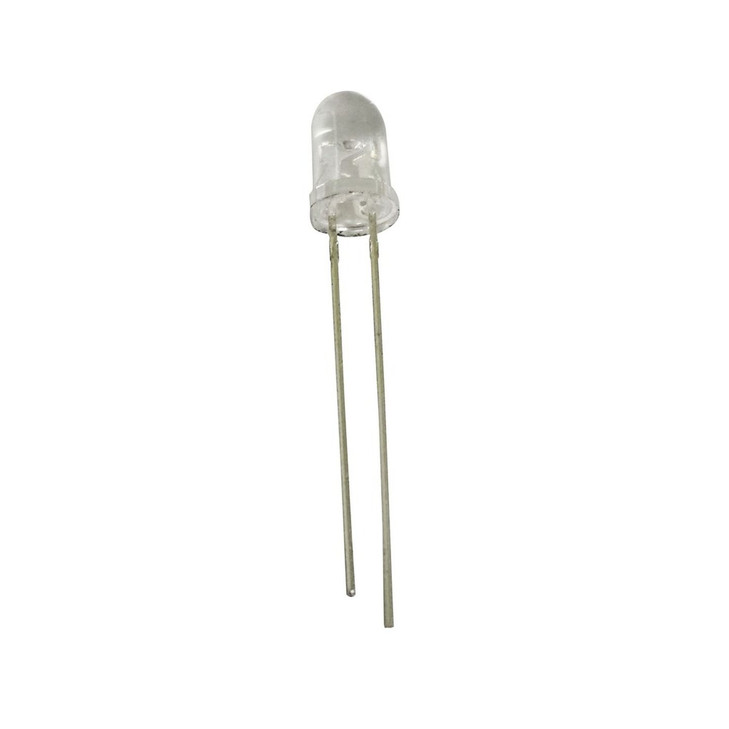

Red 5mm LED 9600mCd Round Clear
LED Components
| LED Type | 5mm Standard LED |
|---|---|
| Light Colour | Red |
| Light Wavelength | 625.0 nm |
| V<sub>f (typ)</sub> - Typical Forward Voltage | 2.1 V |
| I<sub>f (typ)</sub> - Typical Forward Current | 20.0 mA |
| I<sub>f (max)</sub> - Maximum Forward Current | 50.0 mA |
| Intensity | 10000.0 mcd |
| Viewing Angle | 15.0 ° |
| Lens Type | waterclear |
| Resistor for 5VDC | 150.0 Ω |
| Resistor for 9VDC | 360.0 Ω |
| Resistor for 12VDC | 510.0 Ω |
| Illumination Type | Single Colour |
Product Dimensions
| Diameter | 5.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 0.5cm(Length) x 0.5cm(Width) x 3.7cm(Height) |
|---|
