This four channel mixer features 4 balanced mic inputs and 3 line inputs. Input 1 is a dedicated balanced mic input whilst inputs 2 - 4 can accept either balanced mic or line level. Microphone connections are via 5 way pluggable euro block and line connections are via stereo RCA socket (converted to mono internally). Two outputs are provided, one for balanced output (level selectable 3mV or 1V) and one for line level.
3 modes of priority are selectable via the DIP switch on the rear:
Cascade: Input 1 overrides 2-4, Input 2 overrides 3-4, Input 3 overrides 4.
FIBD: Regardless of which input is being used, it automatically blocks out all other inputs.
None: No priority therefore all inputs will be mixed as per a normal mixer.

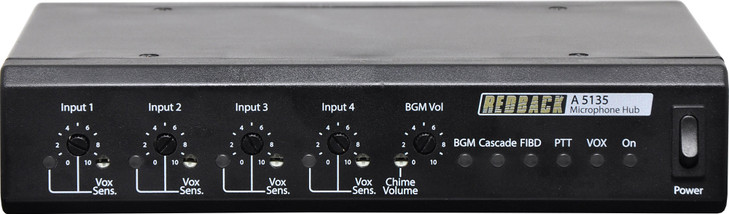

The system can be configured for PTT muting which operates only with microphone inputs, or VOX muting which operates with both microphone and line inputs. Each input is equipped with a volume control and channel active LED indicator.
Features
4 balanced microphone / 3 line inputs
3 modes of priority Cascade, FIBD, None
VOX or PTT muting
VOX muting or both mic and line inputs
Channel active indicators
Stylish half width 1RU chassis
24V DC operation
Separate volume for each input
Adjustable VOX sensitivity for each input
24V DC plugpack included
Includes Power Supply
Rack Mounting:
To mount any of the Redback half rack products into a 19" wide racking system, the H 4990 bracket is required. If a single product is mounted into the H 4990, then a metal (H 4992) or plastic (H 4993) infill panel can be fitted for a neater finish.
100% developed, designed & assembled in Australia.
Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products
Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service. Read more about our industry leading warranty.
