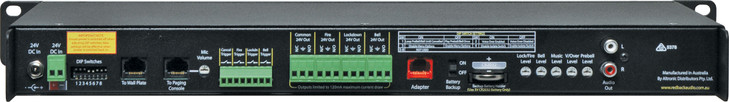

Redback 50 Event 4 Output 24 Hour 7 day Timer

The A 1709 is a versatile timer which has four switched 24V DC outputs and four closing contacts which activate simultaneously. It permits a total of 50 station (event) switching times. Each can be set to turn on any single day of the week or on multiple days, from 1 sec up to 24 hours. Switching events programmed for multiple days count as only a single station (event) and each of the 50 event times may be set to any (but not multiple) output. Manual override is provided so that any of the four outputs can be set “ON” or “OFF” manually which overrides any of the event times programmed for that output. The unit has security lock out of Time Edit, Station Edit and Clear Memory Functions via DIP switch selections on the rear of the unit. Features Powered by 24V DC 50 event times 4 outputs Manual override LCD readout Switching time between 1 second and 24 hours Stylish 1RU half rack case Includes Power Supply Rack Mounting To mount any of the Redback half rack products into a 19" wide racking system, the H 4990 bracket is required. If a single product is mounted into the H 4990, then a metal (H 4992) or plastic (H 4993) infill panel can be fitted for a neater finish. 100% developed, designed & assembled in Australia. Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products Backed by an industry leading 10 Year Manufacturer Warranty. Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service. Read more about our industry leading warranty.
