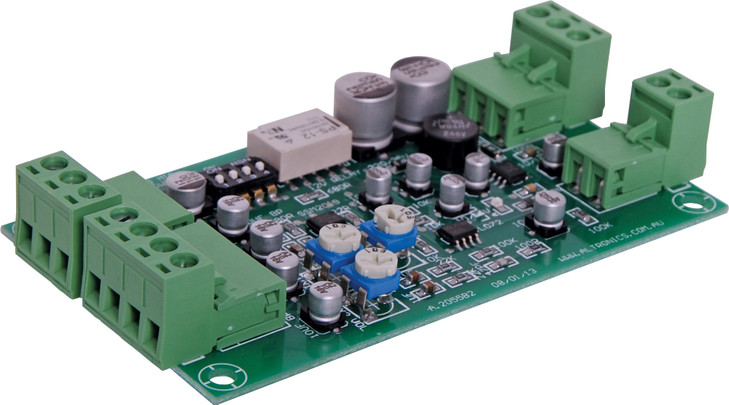

Redback Mic/Line Pre-Amplifier to Line Level Out Converter

This line pre-amp will accept either a microphone or auxiliary input and convert it to a balanced high level signal suitable for distribution up to 500M without interference with up to 3V of output level available. Volume controls are provided for both inputs plus a master volume control. The microphone is a balanced XLR input whilst the auxiliary input consists of 2 x RCA sockets with a DIP switch attenuator to allow for 3 levels of input signals. The output is via a male 3 pin XLR. A signal is fed into either of the two inputs. Either a Balanced Mic Input with an input level of 1.5mV, or a line level input with an input level sensitivity which is DIP switch selectable to 200mV, 500mV or 1V. The Mic input and the Aux inputs have dedicated volume controls and the output volume is set by the Master volume control. The unit is powered from 24V DC only. This unit does not include a power supply. Requires 24V DC @ 500mA. Suitable plugpack M 8968B Features XLR Mic input RCA Aux input XLR balanced output. Phantom power to Mic Input (15V DC). Controls for AUX, MIC and master volume. DIP Switch selectable AUX input sensitivity. 24VDC operation via 2.1mm DC power jack. 100% developed, designed & assembled in Australia. Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products Backed by an industry leading 10 Year Manufacturer Warranty. Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service. Read more about our industry leading warranty.
