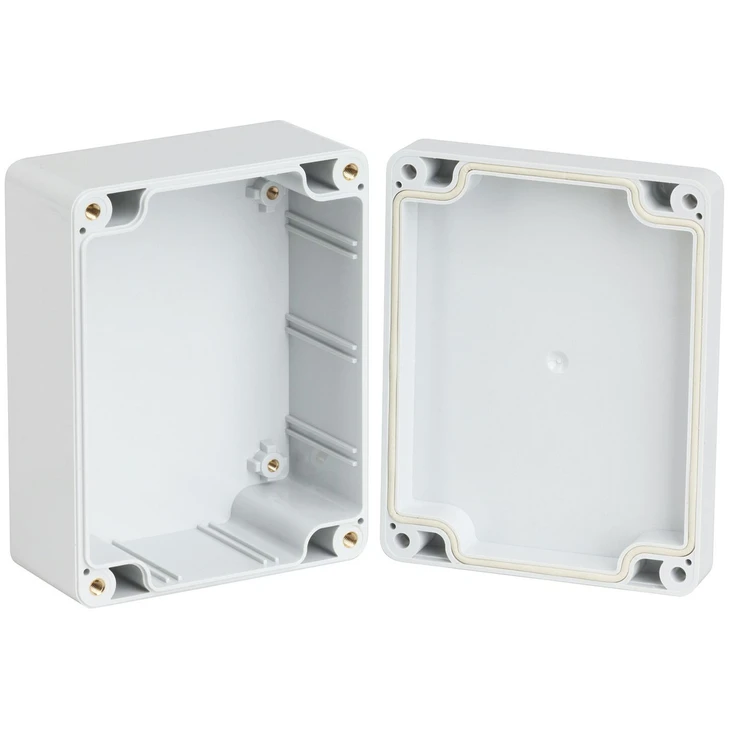

Features:
- Operating temperature: -20 to 100 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Internal guide slots for mounting PCB assemblies vertically
Enclosures and Boxes
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
|---|---|
| PCB Internal Guide Slots | true |
| Internal Mounting Posts | true |
| Gasket sealing system | true |
| Gasket Material | Neoprene |
| Lid Screws | 4.0 pc |
| Ventilation Holes | false |
Product colour
| Colour | Dark Grey |
|---|
Ingress Protection Rating
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
|---|---|
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | IP65 |
Product Dimensions
| Width | 115.0 mm |
|---|---|
| Height | 55.0 mm |
| Depth | 65.0 mm |
Packaged Dimensions
| Packaged Dimensions | 14.8cm(Length) x 7.2cm(Width) x 6.1cm(Height) |
|---|
