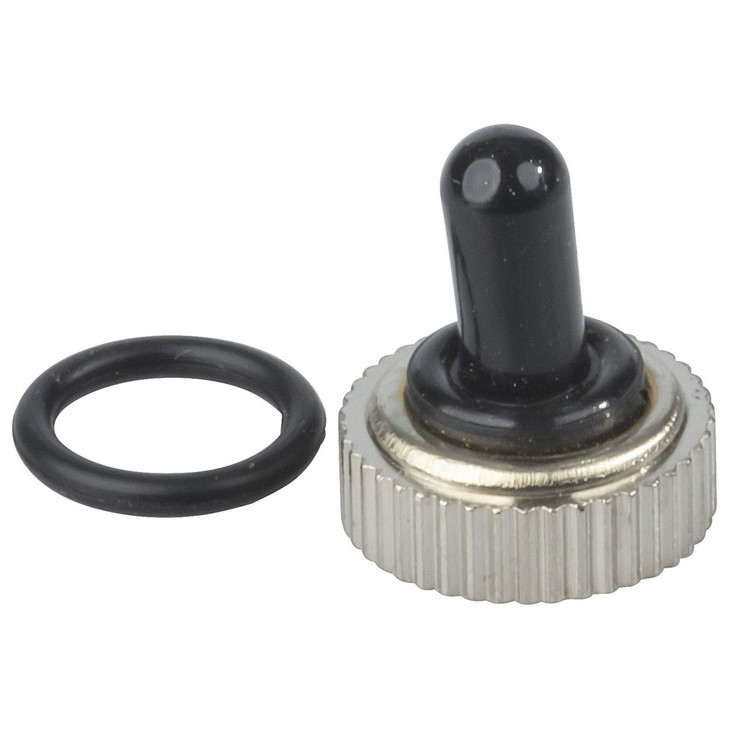

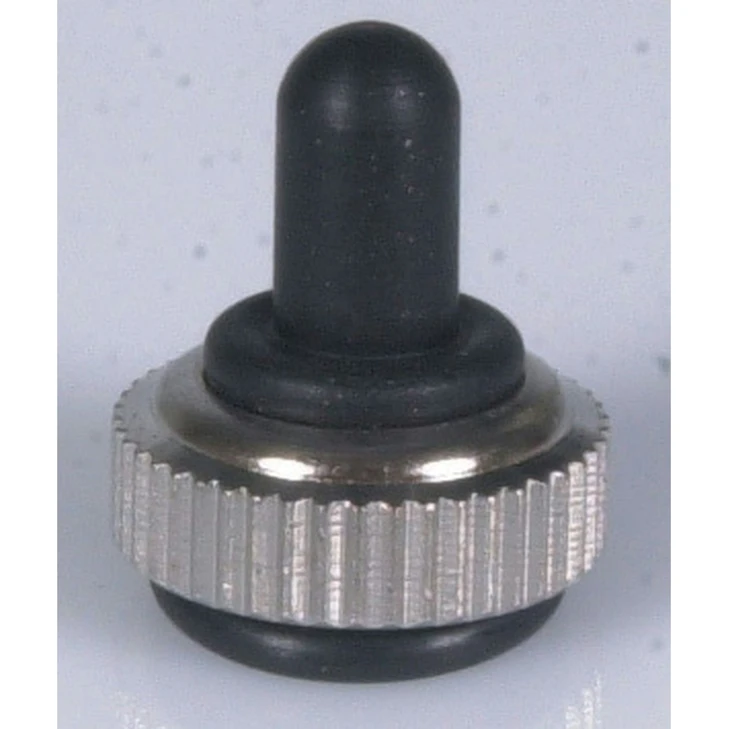

Ideal for use in wet or moist areas. Splash proof 1PS4 rated.
Ingress Protection Rating
| IP Rating certificate | true |
|---|
Toggle Switches
| Switch Type | Toggle |
|---|---|
| Poles / Contacts | 1.0 pole |
| Throws / Positions | 2.0 pos |
| Switch Function | ON-ON |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Strength | 1000V |
| Mechanism Material | Brass/Plastic |
| DC Voltage Rating | 28.0V |
| DC Current Rating | 3.0A |
| Cycle Life | 40000.0 |
| Actuator Length | 10.41mm |
| Actuator Width | 2.54mm |
Electromechanical Switch
| Switch Type | Toggle |
|---|---|
| Poles / Contacts | 1.0 pole |
| Throws / Positions | 1.0 pos |
| Cycle Life | 40000.0 cycles |
| Contact Resistance | 10.0 MΩ |
| Insulation Resistance | 1000.0 MΩ |
| Dielectric Strength | 1000.0 V |
| Actuator Length | 10.6 mm |
| Actuator Width | 12.7 mm |
| Pole Throw Type | SPDT |
AC Voltage Rating
| AC Voltage rating | 250.0 V |
|---|
AC Current Rating
| AC current rating | 2.0 A |
|---|
Packaged Dimensions
| Packaged Dimensions | 2.7cm(Length) x 1.2cm(Width) x 1.2cm(Height) |
|---|
