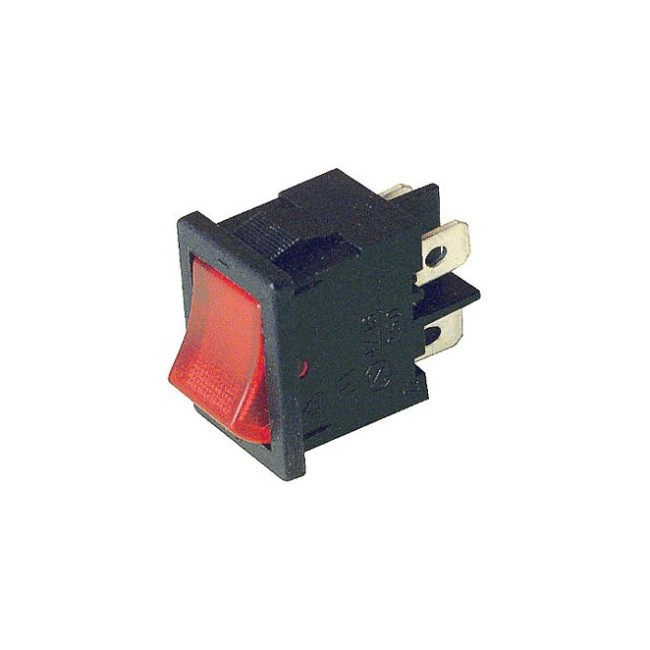

DPDT Heavy Duty Red Illuminated Rocker Switch
A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels.
Electrical contacts are rated to 15A @ 250V AC. Switch is fitted with a 240V AC red neon which illuminates the entire switch actuator when turned on. Suits panels up to 3mm thickness.
- Contact rating: 15A @ 250V ac
- Neon: Red, 240V ac
- Electrical life: 10,000 cycles
- Panel thickness: 3mm
- Mechanical life: 30,000 cycles
- Contact resistance: <20mO
- Insulation resistance: >1000MO
- Dielectric strength: >1500V ac 1 minute
*Specifications are subject to change without notic
